Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: ExecAllocGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-allocation-base-4-4.xsd
Abstract
Documentation:
ExecAllocGrp is a component

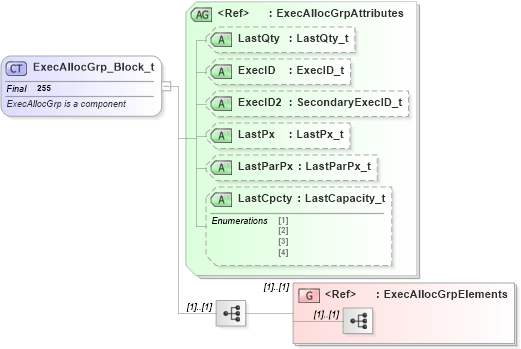

Collapse XSD Schema Diagram:
Drilldown into ExecAllocGrpElements in schema fixml-allocation-base-4-4_xsd Drilldown into LastCpcty in schema fixml-allocation-base-4-4_xsd Drilldown into LastParPx in schema fixml-allocation-base-4-4_xsd Drilldown into LastPx in schema fixml-allocation-base-4-4_xsd Drilldown into ExecID2 in schema fixml-allocation-base-4-4_xsd Drilldown into ExecID in schema fixml-allocation-base-4-4_xsd Drilldown into LastQty in schema fixml-allocation-base-4-4_xsd Drilldown into ExecAllocGrpAttributes in schema fixml-allocation-base-4-4_xsdXSD Diagram of ExecAllocGrp_Block_t in schema fixml-allocation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="ExecAllocGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">ExecAllocGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="ExecAllocGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="ExecAllocGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="ExecAllocGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:ExecAllocGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
LastQty nsA:LastQty Optional
ExecID nsA:ExecID Optional
ExecID2 nsA:ExecID2 Optional
LastPx nsA:LastPx Optional
LastParPx nsA:LastParPx Optional
LastCpcty nsA:LastCpcty Optional
Collapse Derivation Tree:
Collapse References:
nsA:AllExc, nsA:AllExc
