Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: InstrmtExt
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:InstrumentExtension_Block_t
Containing Schema: fixml-confirmation-base-4-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

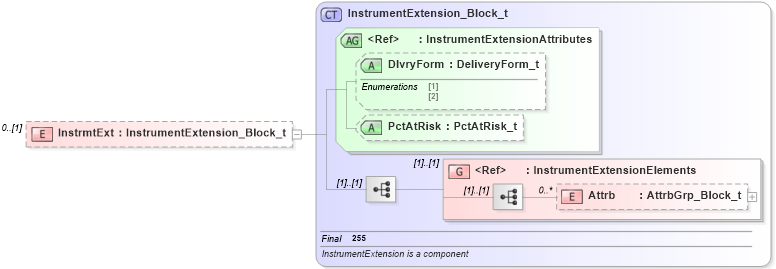

Drilldown into Attrb in schema fixml-components-base-4-4_xsd Drilldown into InstrumentExtensionElements in schema fixml-components-base-4-4_xsd Drilldown into PctAtRisk in schema fixml-components-base-4-4_xsd Drilldown into DlvryForm in schema fixml-components-base-4-4_xsd Drilldown into InstrumentExtensionAttributes in schema fixml-components-base-4-4_xsd Drilldown into InstrumentExtension_Block_t in schema fixml-components-base-4-4_xsdXSD Diagram of InstrmtExt in schema fixml-confirmation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="InstrmtExt" type="InstrumentExtension_Block_t" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Attrb nsA:Attrb 0 unbounded
<xs:group> nsA:InstrumentExtensionElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
DlvryForm nsA:DlvryForm Optional
PctAtRisk nsA:PctAtRisk Optional
Collapse Derivation Tree:
