Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: Instrument_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
Instrument is a component

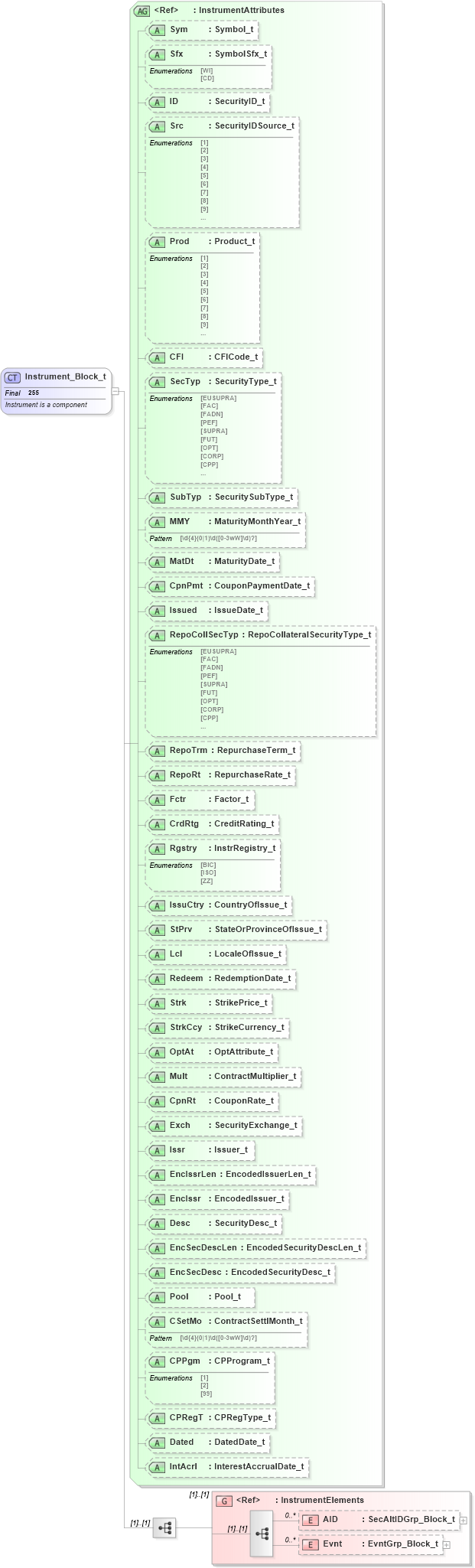

Collapse XSD Schema Diagram:
Drilldown into Evnt in schema fixml-components-base-4-4_xsd Drilldown into AID in schema fixml-components-base-4-4_xsd Drilldown into InstrumentElements in schema fixml-components-base-4-4_xsd Drilldown into IntAcrl in schema fixml-components-base-4-4_xsd Drilldown into Dated in schema fixml-components-base-4-4_xsd Drilldown into CPRegT in schema fixml-components-base-4-4_xsd Drilldown into CPPgm in schema fixml-components-base-4-4_xsd Drilldown into CSetMo in schema fixml-components-base-4-4_xsd Drilldown into Pool in schema fixml-components-base-4-4_xsd Drilldown into EncSecDesc in schema fixml-components-base-4-4_xsd Drilldown into EncSecDescLen in schema fixml-components-base-4-4_xsd Drilldown into Desc in schema fixml-components-base-4-4_xsd Drilldown into EncIssr in schema fixml-components-base-4-4_xsd Drilldown into EncIssrLen in schema fixml-components-base-4-4_xsd Drilldown into Issr in schema fixml-components-base-4-4_xsd Drilldown into Exch in schema fixml-components-base-4-4_xsd Drilldown into CpnRt in schema fixml-components-base-4-4_xsd Drilldown into Mult in schema fixml-components-base-4-4_xsd Drilldown into OptAt in schema fixml-components-base-4-4_xsd Drilldown into StrkCcy in schema fixml-components-base-4-4_xsd Drilldown into Strk in schema fixml-components-base-4-4_xsd Drilldown into Redeem in schema fixml-components-base-4-4_xsd Drilldown into Lcl in schema fixml-components-base-4-4_xsd Drilldown into StPrv in schema fixml-components-base-4-4_xsd Drilldown into IssuCtry in schema fixml-components-base-4-4_xsd Drilldown into Rgstry in schema fixml-components-base-4-4_xsd Drilldown into CrdRtg in schema fixml-components-base-4-4_xsd Drilldown into Fctr in schema fixml-components-base-4-4_xsd Drilldown into RepoRt in schema fixml-components-base-4-4_xsd Drilldown into RepoTrm in schema fixml-components-base-4-4_xsd Drilldown into RepoCollSecTyp in schema fixml-components-base-4-4_xsd Drilldown into Issued in schema fixml-components-base-4-4_xsd Drilldown into CpnPmt in schema fixml-components-base-4-4_xsd Drilldown into MatDt in schema fixml-components-base-4-4_xsd Drilldown into MMY in schema fixml-components-base-4-4_xsd Drilldown into SubTyp in schema fixml-components-base-4-4_xsd Drilldown into SecTyp in schema fixml-components-base-4-4_xsd Drilldown into CFI in schema fixml-components-base-4-4_xsd Drilldown into Prod in schema fixml-components-base-4-4_xsd Drilldown into Src in schema fixml-components-base-4-4_xsd Drilldown into ID in schema fixml-components-base-4-4_xsd Drilldown into Sfx in schema fixml-components-base-4-4_xsd Drilldown into Sym in schema fixml-components-base-4-4_xsd Drilldown into InstrumentAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of Instrument_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="Instrument_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">Instrument is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="Instrument" ComponentType="Block" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="InstrumentElements" />
    </xs:sequence>
    <xs:attributeGroup ref="InstrumentAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AID nsA:AID 0 unbounded
Evnt nsA:Evnt 0 unbounded
<xs:group> nsA:InstrumentElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Sym nsA:Sym Optional
Sfx nsA:Sfx Optional
ID nsA:ID Optional
Src nsA:Src Optional
Prod nsA:Prod Optional
CFI nsA:CFI Optional
SecTyp nsA:SecTyp Optional
SubTyp nsA:SubTyp Optional
MMY nsA:MMY Optional
MatDt nsA:MatDt Optional
CpnPmt nsA:CpnPmt Optional
Issued nsA:Issued Optional
RepoCollSecTyp nsA:RepoCollSecTyp Optional
RepoTrm nsA:RepoTrm Optional
RepoRt nsA:RepoRt Optional
Fctr nsA:Fctr Optional
CrdRtg nsA:CrdRtg Optional
Rgstry nsA:Rgstry Optional
IssuCtry nsA:IssuCtry Optional
StPrv nsA:StPrv Optional
Lcl nsA:Lcl Optional
Redeem nsA:Redeem Optional
Strk nsA:Strk Optional
StrkCcy nsA:StrkCcy Optional
OptAt nsA:OptAt Optional
Mult nsA:Mult Optional
CpnRt nsA:CpnRt Optional
Exch nsA:Exch Optional
Issr nsA:Issr Optional
EncIssrLen nsA:EncIssrLen Optional
EncIssr nsA:EncIssr Optional
Desc nsA:Desc Optional
EncSecDescLen nsA:EncSecDescLen Optional
EncSecDesc nsA:EncSecDesc Optional
Pool nsA:Pool Optional
CSetMo nsA:CSetMo Optional
CPPgm nsA:CPPgm Optional
CPRegT nsA:CPRegT Optional
Dated nsA:Dated Optional
IntAcrl nsA:IntAcrl Optional
Collapse Derivation Tree:
Collapse References:
nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:InstrmtnsA:Instrmt, nsA:Instrmt, nsA:Instrmt, nsA:Instrmt,
