Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: InstrumentLegAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd

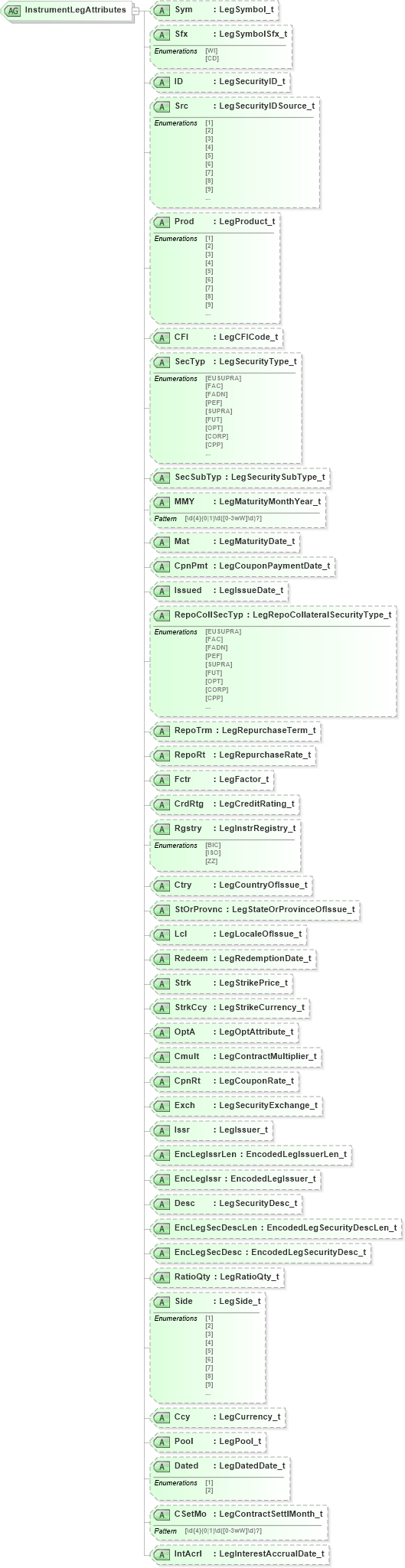

Collapse XSD Schema Diagram:
Drilldown into IntAcrl in schema fixml-components-base-4-4_xsd Drilldown into CSetMo in schema fixml-components-base-4-4_xsd Drilldown into Dated in schema fixml-components-base-4-4_xsd Drilldown into Pool in schema fixml-components-base-4-4_xsd Drilldown into Ccy in schema fixml-components-base-4-4_xsd Drilldown into Side in schema fixml-components-base-4-4_xsd Drilldown into RatioQty in schema fixml-components-base-4-4_xsd Drilldown into EncLegSecDesc in schema fixml-components-base-4-4_xsd Drilldown into EncLegSecDescLen in schema fixml-components-base-4-4_xsd Drilldown into Desc in schema fixml-components-base-4-4_xsd Drilldown into EncLegIssr in schema fixml-components-base-4-4_xsd Drilldown into EncLegIssrLen in schema fixml-components-base-4-4_xsd Drilldown into Issr in schema fixml-components-base-4-4_xsd Drilldown into Exch in schema fixml-components-base-4-4_xsd Drilldown into CpnRt in schema fixml-components-base-4-4_xsd Drilldown into Cmult in schema fixml-components-base-4-4_xsd Drilldown into OptA in schema fixml-components-base-4-4_xsd Drilldown into StrkCcy in schema fixml-components-base-4-4_xsd Drilldown into Strk in schema fixml-components-base-4-4_xsd Drilldown into Redeem in schema fixml-components-base-4-4_xsd Drilldown into Lcl in schema fixml-components-base-4-4_xsd Drilldown into StOrProvnc in schema fixml-components-base-4-4_xsd Drilldown into Ctry in schema fixml-components-base-4-4_xsd Drilldown into Rgstry in schema fixml-components-base-4-4_xsd Drilldown into CrdRtg in schema fixml-components-base-4-4_xsd Drilldown into Fctr in schema fixml-components-base-4-4_xsd Drilldown into RepoRt in schema fixml-components-base-4-4_xsd Drilldown into RepoTrm in schema fixml-components-base-4-4_xsd Drilldown into RepoCollSecTyp in schema fixml-components-base-4-4_xsd Drilldown into Issued in schema fixml-components-base-4-4_xsd Drilldown into CpnPmt in schema fixml-components-base-4-4_xsd Drilldown into Mat in schema fixml-components-base-4-4_xsd Drilldown into MMY in schema fixml-components-base-4-4_xsd Drilldown into SecSubTyp in schema fixml-components-base-4-4_xsd Drilldown into SecTyp in schema fixml-components-base-4-4_xsd Drilldown into CFI in schema fixml-components-base-4-4_xsd Drilldown into Prod in schema fixml-components-base-4-4_xsd Drilldown into Src in schema fixml-components-base-4-4_xsd Drilldown into ID in schema fixml-components-base-4-4_xsd Drilldown into Sfx in schema fixml-components-base-4-4_xsd Drilldown into Sym in schema fixml-components-base-4-4_xsdXSD Diagram of InstrumentLegAttributes in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="InstrumentLegAttributes">
    <xs:attribute name="Sym" type="LegSymbol_t" use="optional" />
    <xs:attribute name="Sfx" type="LegSymbolSfx_t" use="optional" />
    <xs:attribute name="ID" type="LegSecurityID_t" use="optional" />
    <xs:attribute name="Src" type="LegSecurityIDSource_t" use="optional" />
    <xs:attribute name="Prod" type="LegProduct_t" use="optional" />
    <xs:attribute name="CFI" type="LegCFICode_t" use="optional" />
    <xs:attribute name="SecTyp" type="LegSecurityType_t" use="optional" />
    <xs:attribute name="SecSubTyp" type="LegSecuritySubType_t" use="optional" />
    <xs:attribute name="MMY" type="LegMaturityMonthYear_t" use="optional" />
    <xs:attribute name="Mat" type="LegMaturityDate_t" use="optional" />
    <xs:attribute name="CpnPmt" type="LegCouponPaymentDate_t" use="optional" />
    <xs:attribute name="Issued" type="LegIssueDate_t" use="optional" />
    <xs:attribute name="RepoCollSecTyp" type="LegRepoCollateralSecurityType_t" use="optional" />
    <xs:attribute name="RepoTrm" type="LegRepurchaseTerm_t" use="optional" />
    <xs:attribute name="RepoRt" type="LegRepurchaseRate_t" use="optional" />
    <xs:attribute name="Fctr" type="LegFactor_t" use="optional" />
    <xs:attribute name="CrdRtg" type="LegCreditRating_t" use="optional" />
    <xs:attribute name="Rgstry" type="LegInstrRegistry_t" use="optional" />
    <xs:attribute name="Ctry" type="LegCountryOfIssue_t" use="optional" />
    <xs:attribute name="StOrProvnc" type="LegStateOrProvinceOfIssue_t" use="optional" />
    <xs:attribute name="Lcl" type="LegLocaleOfIssue_t" use="optional" />
    <xs:attribute name="Redeem" type="LegRedemptionDate_t" use="optional" />
    <xs:attribute name="Strk" type="LegStrikePrice_t" use="optional" />
    <xs:attribute name="StrkCcy" type="LegStrikeCurrency_t" use="optional" />
    <xs:attribute name="OptA" type="LegOptAttribute_t" use="optional" />
    <xs:attribute name="Cmult" type="LegContractMultiplier_t" use="optional" />
    <xs:attribute name="CpnRt" type="LegCouponRate_t" use="optional" />
    <xs:attribute name="Exch" type="LegSecurityExchange_t" use="optional" />
    <xs:attribute name="Issr" type="LegIssuer_t" use="optional" />
    <xs:attribute name="EncLegIssrLen" type="EncodedLegIssuerLen_t" use="optional" />
    <xs:attribute name="EncLegIssr" type="EncodedLegIssuer_t" use="optional" />
    <xs:attribute name="Desc" type="LegSecurityDesc_t" use="optional" />
    <xs:attribute name="EncLegSecDescLen" type="EncodedLegSecurityDescLen_t" use="optional" />
    <xs:attribute name="EncLegSecDesc" type="EncodedLegSecurityDesc_t" use="optional" />
    <xs:attribute name="RatioQty" type="LegRatioQty_t" use="optional" />
    <xs:attribute name="Side" type="LegSide_t" use="optional" />
    <xs:attribute name="Ccy" type="LegCurrency_t" use="optional" />
    <xs:attribute name="Pool" type="LegPool_t" use="optional" />
    <xs:attribute name="Dated" type="LegDatedDate_t" use="optional" />
    <xs:attribute name="CSetMo" type="LegContractSettlMonth_t" use="optional" />
    <xs:attribute name="IntAcrl" type="LegInterestAccrualDate_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
Sym nsA:Sym Optional
Sfx nsA:Sfx Optional
ID nsA:ID Optional
Src nsA:Src Optional
Prod nsA:Prod Optional
CFI nsA:CFI Optional
SecTyp nsA:SecTyp Optional
SecSubTyp nsA:SecSubTyp Optional
MMY nsA:MMY Optional
Mat nsA:Mat Optional
CpnPmt nsA:CpnPmt Optional
Issued nsA:Issued Optional
RepoCollSecTyp nsA:RepoCollSecTyp Optional
RepoTrm nsA:RepoTrm Optional
RepoRt nsA:RepoRt Optional
Fctr nsA:Fctr Optional
CrdRtg nsA:CrdRtg Optional
Rgstry nsA:Rgstry Optional
Ctry nsA:Ctry Optional
StOrProvnc nsA:StOrProvnc Optional
Lcl nsA:Lcl Optional
Redeem nsA:Redeem Optional
Strk nsA:Strk Optional
StrkCcy nsA:StrkCcy Optional
OptA nsA:OptA Optional
Cmult nsA:Cmult Optional
CpnRt nsA:CpnRt Optional
Exch nsA:Exch Optional
Issr nsA:Issr Optional
EncLegIssrLen nsA:EncLegIssrLen Optional
EncLegIssr nsA:EncLegIssr Optional
Desc nsA:Desc Optional
EncLegSecDescLen nsA:EncLegSecDescLen Optional
EncLegSecDesc nsA:EncLegSecDesc Optional
RatioQty nsA:RatioQty Optional
Side nsA:Side Optional
Ccy nsA:Ccy Optional
Pool nsA:Pool Optional
Dated nsA:Dated Optional
CSetMo nsA:CSetMo Optional
IntAcrl nsA:IntAcrl Optional
