Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: ListExct
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:ListExecute_message_t
Containing Schema: fixml-listorders-base-4-4.xsd
Abstract

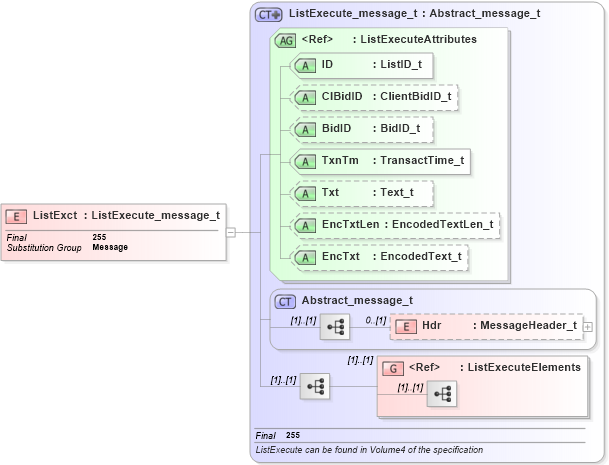

Collapse XSD Schema Diagram:
Drilldown into ListExecuteElements in schema fixml-listorders-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-listorders-base-4-4_xsd Drilldown into Txt in schema fixml-listorders-base-4-4_xsd Drilldown into TxnTm in schema fixml-listorders-base-4-4_xsd Drilldown into BidID in schema fixml-listorders-base-4-4_xsd Drilldown into ClBidID in schema fixml-listorders-base-4-4_xsd Drilldown into ID in schema fixml-listorders-base-4-4_xsd Drilldown into ListExecuteAttributes in schema fixml-listorders-base-4-4_xsd Drilldown into ListExecute_message_t in schema fixml-listorders-base-4-4_xsdXSD Diagram of ListExct in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="ListExct" type="ListExecute_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
<xs:group> nsA:ListExecuteElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
ClBidID nsA:ClBidID Optional
BidID nsA:BidID Optional
TxnTm nsA:TxnTm Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
