Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: ListExecuteAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-listorders-base-4-4.xsd

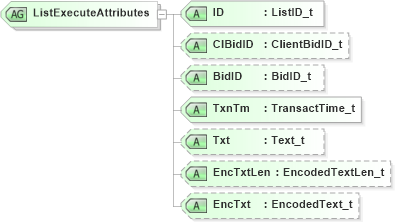

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-listorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-listorders-base-4-4_xsd Drilldown into Txt in schema fixml-listorders-base-4-4_xsd Drilldown into TxnTm in schema fixml-listorders-base-4-4_xsd Drilldown into BidID in schema fixml-listorders-base-4-4_xsd Drilldown into ClBidID in schema fixml-listorders-base-4-4_xsd Drilldown into ID in schema fixml-listorders-base-4-4_xsdXSD Diagram of ListExecuteAttributes in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="ListExecuteAttributes">
    <xs:attribute name="ID" type="ListID_t" use="required" />
    <xs:attribute name="ClBidID" type="ClientBidID_t" use="optional" />
    <xs:attribute name="BidID" type="BidID_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
ClBidID nsA:ClBidID Optional
BidID nsA:BidID Optional
TxnTm nsA:TxnTm Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
