Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: MassQuoteAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-quotation-base-4-4.xsd

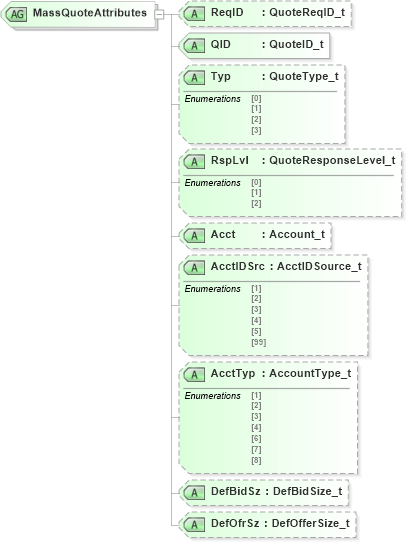

Collapse XSD Schema Diagram:
Drilldown into DefOfrSz in schema fixml-quotation-base-4-4_xsd Drilldown into DefBidSz in schema fixml-quotation-base-4-4_xsd Drilldown into AcctTyp in schema fixml-quotation-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-quotation-base-4-4_xsd Drilldown into Acct in schema fixml-quotation-base-4-4_xsd Drilldown into RspLvl in schema fixml-quotation-base-4-4_xsd Drilldown into Typ in schema fixml-quotation-base-4-4_xsd Drilldown into QID in schema fixml-quotation-base-4-4_xsd Drilldown into ReqID in schema fixml-quotation-base-4-4_xsdXSD Diagram of MassQuoteAttributes in schema fixml-quotation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="MassQuoteAttributes">
    <xs:attribute name="ReqID" type="QuoteReqID_t" use="optional" />
    <xs:attribute name="QID" type="QuoteID_t" use="required" />
    <xs:attribute name="Typ" type="QuoteType_t" use="optional" />
    <xs:attribute name="RspLvl" type="QuoteResponseLevel_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="optional" />
    <xs:attribute name="DefBidSz" type="DefBidSize_t" use="optional" />
    <xs:attribute name="DefOfrSz" type="DefOfferSize_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Optional
QID nsA:QID Required
Typ nsA:Typ Optional
RspLvl nsA:RspLvl Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
DefBidSz nsA:DefBidSz Optional
DefOfrSz nsA:DefOfrSz Optional
