Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: MDFullGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-marketdata-base-4-4.xsd
Abstract
Documentation:
MDFullGrp is a component

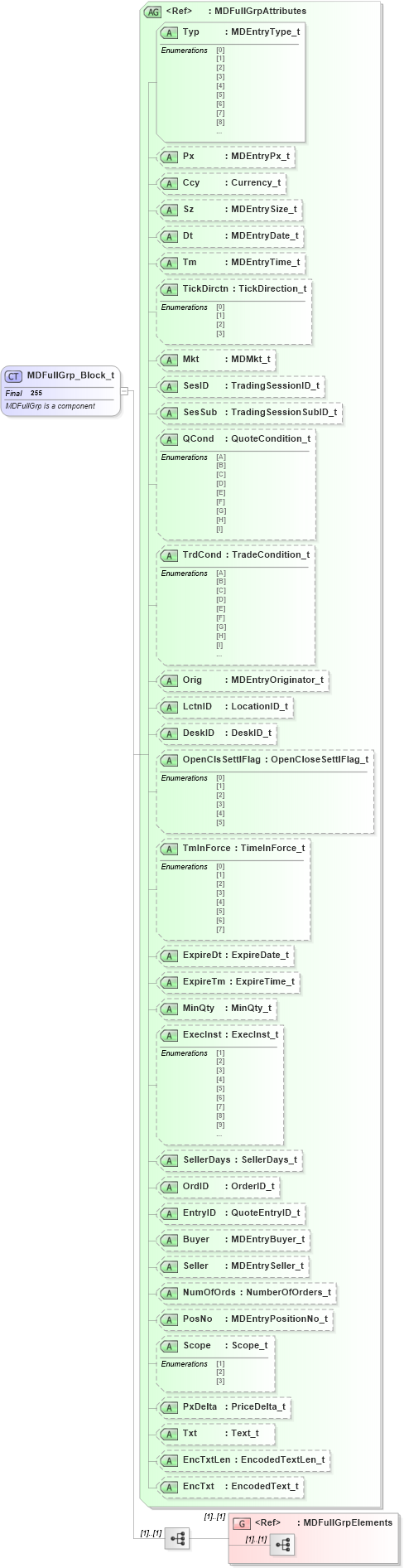

Collapse XSD Schema Diagram:
Drilldown into MDFullGrpElements in schema fixml-marketdata-base-4-4_xsd Drilldown into EncTxt in schema fixml-marketdata-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-marketdata-base-4-4_xsd Drilldown into Txt in schema fixml-marketdata-base-4-4_xsd Drilldown into PxDelta in schema fixml-marketdata-base-4-4_xsd Drilldown into Scope in schema fixml-marketdata-base-4-4_xsd Drilldown into PosNo in schema fixml-marketdata-base-4-4_xsd Drilldown into NumOfOrds in schema fixml-marketdata-base-4-4_xsd Drilldown into Seller in schema fixml-marketdata-base-4-4_xsd Drilldown into Buyer in schema fixml-marketdata-base-4-4_xsd Drilldown into EntryID in schema fixml-marketdata-base-4-4_xsd Drilldown into OrdID in schema fixml-marketdata-base-4-4_xsd Drilldown into SellerDays in schema fixml-marketdata-base-4-4_xsd Drilldown into ExecInst in schema fixml-marketdata-base-4-4_xsd Drilldown into MinQty in schema fixml-marketdata-base-4-4_xsd Drilldown into ExpireTm in schema fixml-marketdata-base-4-4_xsd Drilldown into ExpireDt in schema fixml-marketdata-base-4-4_xsd Drilldown into TmInForce in schema fixml-marketdata-base-4-4_xsd Drilldown into OpenClsSettlFlag in schema fixml-marketdata-base-4-4_xsd Drilldown into DeskID in schema fixml-marketdata-base-4-4_xsd Drilldown into LctnID in schema fixml-marketdata-base-4-4_xsd Drilldown into Orig in schema fixml-marketdata-base-4-4_xsd Drilldown into TrdCond in schema fixml-marketdata-base-4-4_xsd Drilldown into QCond in schema fixml-marketdata-base-4-4_xsd Drilldown into SesSub in schema fixml-marketdata-base-4-4_xsd Drilldown into SesID in schema fixml-marketdata-base-4-4_xsd Drilldown into Mkt in schema fixml-marketdata-base-4-4_xsd Drilldown into TickDirctn in schema fixml-marketdata-base-4-4_xsd Drilldown into Tm in schema fixml-marketdata-base-4-4_xsd Drilldown into Dt in schema fixml-marketdata-base-4-4_xsd Drilldown into Sz in schema fixml-marketdata-base-4-4_xsd Drilldown into Ccy in schema fixml-marketdata-base-4-4_xsd Drilldown into Px in schema fixml-marketdata-base-4-4_xsd Drilldown into Typ in schema fixml-marketdata-base-4-4_xsd Drilldown into MDFullGrpAttributes in schema fixml-marketdata-base-4-4_xsdXSD Diagram of MDFullGrp_Block_t in schema fixml-marketdata-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="MDFullGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">MDFullGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="MDFullGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="MDFullGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="MDFullGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:MDFullGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Typ nsA:Typ Required
Px nsA:Px Optional
Ccy nsA:Ccy Optional
Sz nsA:Sz Optional
Dt nsA:Dt Optional
Tm nsA:Tm Optional
TickDirctn nsA:TickDirctn Optional
Mkt nsA:Mkt Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
QCond nsA:QCond Optional
TrdCond nsA:TrdCond Optional
Orig nsA:Orig Optional
LctnID nsA:LctnID Optional
DeskID nsA:DeskID Optional
OpenClsSettlFlag nsA:OpenClsSettlFlag Optional
TmInForce nsA:TmInForce Optional
ExpireDt nsA:ExpireDt Optional
ExpireTm nsA:ExpireTm Optional
MinQty nsA:MinQty Optional
ExecInst nsA:ExecInst Optional
SellerDays nsA:SellerDays Optional
OrdID nsA:OrdID Optional
EntryID nsA:EntryID Optional
Buyer nsA:Buyer Optional
Seller nsA:Seller Optional
NumOfOrds nsA:NumOfOrds Optional
PosNo nsA:PosNo Optional
Scope nsA:Scope Optional
PxDelta nsA:PxDelta Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Full
