Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: MessageHeader_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:BaseHeader_t
Containing Schema: fixml-components-base-4-4.xsd
Abstract

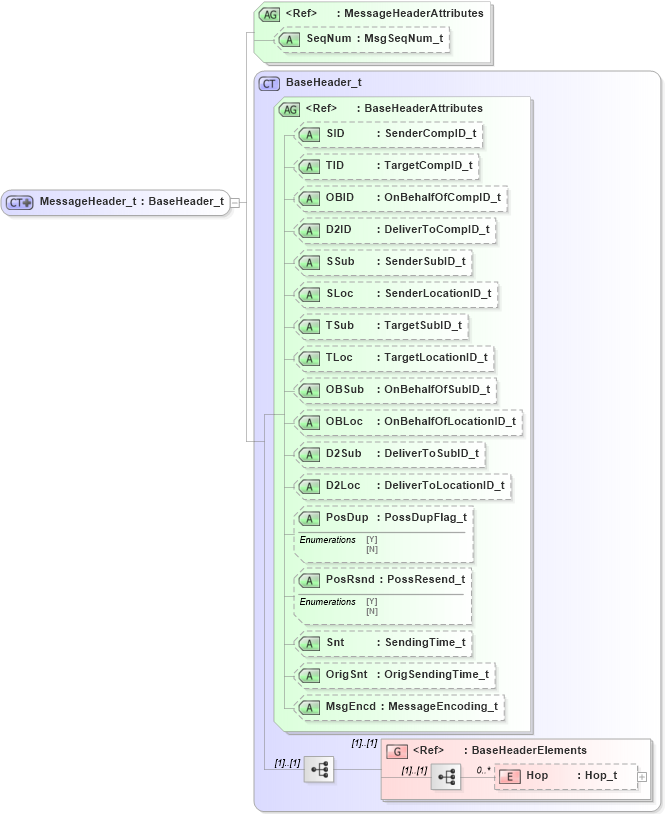

Collapse XSD Schema Diagram:
Drilldown into Hop in schema fixml-components-base-4-4_xsd Drilldown into BaseHeaderElements in schema fixml-components-base-4-4_xsd Drilldown into MsgEncd in schema fixml-components-base-4-4_xsd Drilldown into OrigSnt in schema fixml-components-base-4-4_xsd Drilldown into Snt in schema fixml-components-base-4-4_xsd Drilldown into PosRsnd in schema fixml-components-base-4-4_xsd Drilldown into PosDup in schema fixml-components-base-4-4_xsd Drilldown into D2Loc in schema fixml-components-base-4-4_xsd Drilldown into D2Sub in schema fixml-components-base-4-4_xsd Drilldown into OBLoc in schema fixml-components-base-4-4_xsd Drilldown into OBSub in schema fixml-components-base-4-4_xsd Drilldown into TLoc in schema fixml-components-base-4-4_xsd Drilldown into TSub in schema fixml-components-base-4-4_xsd Drilldown into SLoc in schema fixml-components-base-4-4_xsd Drilldown into SSub in schema fixml-components-base-4-4_xsd Drilldown into D2ID in schema fixml-components-base-4-4_xsd Drilldown into OBID in schema fixml-components-base-4-4_xsd Drilldown into TID in schema fixml-components-base-4-4_xsd Drilldown into SID in schema fixml-components-base-4-4_xsd Drilldown into BaseHeaderAttributes in schema fixml-components-base-4-4_xsd Drilldown into BaseHeader_t in schema fixml-components-base-4-4_xsd Drilldown into SeqNum in schema fixml-components-base-4-4_xsd Drilldown into MessageHeaderAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of MessageHeader_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="MessageHeader_t">
    <xs:complexContent>
        <xs:extension base="BaseHeader_t">
            <xs:attributeGroup ref="MessageHeaderAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hop nsA:Hop 0 unbounded
<xs:group> nsA:BaseHeaderElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SID nsA:SID Optional
TID nsA:TID Optional
OBID nsA:OBID Optional
D2ID nsA:D2ID Optional
SSub nsA:SSub Optional
SLoc nsA:SLoc Optional
TSub nsA:TSub Optional
TLoc nsA:TLoc Optional
OBSub nsA:OBSub Optional
OBLoc nsA:OBLoc Optional
D2Sub nsA:D2Sub Optional
D2Loc nsA:D2Loc Optional
PosDup nsA:PosDup Optional
PosRsnd nsA:PosRsnd Optional
Snt nsA:Snt Optional
OrigSnt nsA:OrigSnt Optional
MsgEncd nsA:MsgEncd Optional
SeqNum nsA:SeqNum Optional
Collapse Derivation Tree:
Collapse References:
nsA:Hdr
