Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: MktDataFull
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:MarketDataSnapshotFullRefresh_message_t
Containing Schema: fixml-marketdata-base-4-4.xsd
Abstract

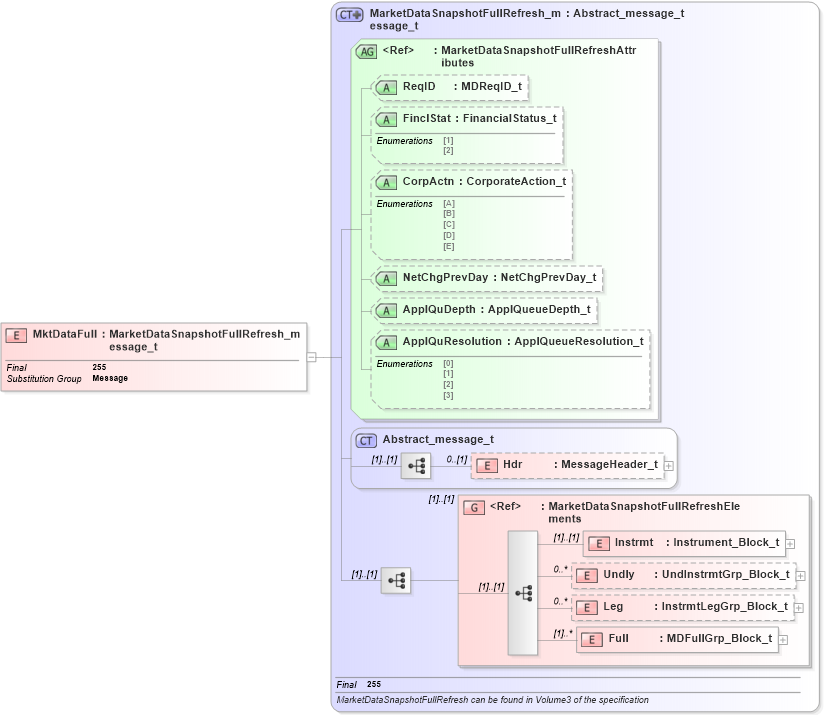

Collapse XSD Schema Diagram:
Drilldown into Full in schema fixml-marketdata-base-4-4_xsd Drilldown into Leg in schema fixml-marketdata-base-4-4_xsd Drilldown into Undly in schema fixml-marketdata-base-4-4_xsd Drilldown into Instrmt in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataSnapshotFullRefreshElements in schema fixml-marketdata-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into ApplQuResolution in schema fixml-marketdata-base-4-4_xsd Drilldown into ApplQuDepth in schema fixml-marketdata-base-4-4_xsd Drilldown into NetChgPrevDay in schema fixml-marketdata-base-4-4_xsd Drilldown into CorpActn in schema fixml-marketdata-base-4-4_xsd Drilldown into FinclStat in schema fixml-marketdata-base-4-4_xsd Drilldown into ReqID in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataSnapshotFullRefreshAttributes in schema fixml-marketdata-base-4-4_xsd Drilldown into MarketDataSnapshotFullRefresh_message_t in schema fixml-marketdata-base-4-4_xsdXSD Diagram of MktDataFull in schema fixml-marketdata-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="MktDataFull" type="MarketDataSnapshotFullRefresh_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
Full nsA:Full (1) unbounded
<xs:group> nsA:MarketDataSnapshotFullRefreshElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Optional
FinclStat nsA:FinclStat Optional
CorpActn nsA:CorpActn Optional
NetChgPrevDay nsA:NetChgPrevDay Optional
ApplQuDepth nsA:ApplQuDepth Optional
ApplQuResolution nsA:ApplQuResolution Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
