Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: NewOrderCrossAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-crossorders-base-4-4.xsd

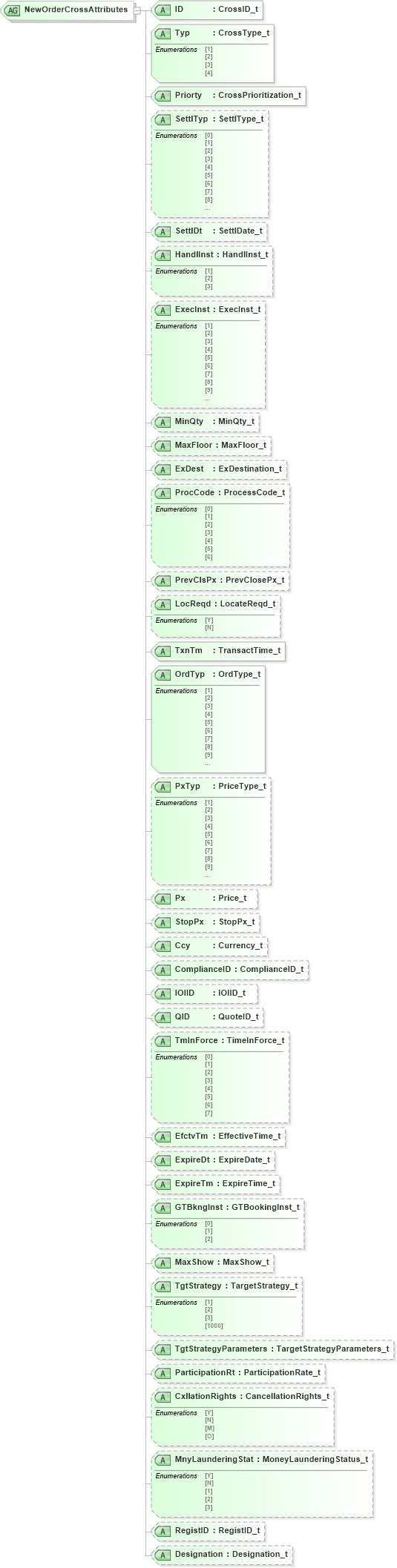

Collapse XSD Schema Diagram:
Drilldown into Designation in schema fixml-crossorders-base-4-4_xsd Drilldown into RegistID in schema fixml-crossorders-base-4-4_xsd Drilldown into MnyLaunderingStat in schema fixml-crossorders-base-4-4_xsd Drilldown into CxllationRights in schema fixml-crossorders-base-4-4_xsd Drilldown into ParticipationRt in schema fixml-crossorders-base-4-4_xsd Drilldown into TgtStrategyParameters in schema fixml-crossorders-base-4-4_xsd Drilldown into TgtStrategy in schema fixml-crossorders-base-4-4_xsd Drilldown into MaxShow in schema fixml-crossorders-base-4-4_xsd Drilldown into GTBkngInst in schema fixml-crossorders-base-4-4_xsd Drilldown into ExpireTm in schema fixml-crossorders-base-4-4_xsd Drilldown into ExpireDt in schema fixml-crossorders-base-4-4_xsd Drilldown into EfctvTm in schema fixml-crossorders-base-4-4_xsd Drilldown into TmInForce in schema fixml-crossorders-base-4-4_xsd Drilldown into QID in schema fixml-crossorders-base-4-4_xsd Drilldown into IOIID in schema fixml-crossorders-base-4-4_xsd Drilldown into ComplianceID in schema fixml-crossorders-base-4-4_xsd Drilldown into Ccy in schema fixml-crossorders-base-4-4_xsd Drilldown into StopPx in schema fixml-crossorders-base-4-4_xsd Drilldown into Px in schema fixml-crossorders-base-4-4_xsd Drilldown into PxTyp in schema fixml-crossorders-base-4-4_xsd Drilldown into OrdTyp in schema fixml-crossorders-base-4-4_xsd Drilldown into TxnTm in schema fixml-crossorders-base-4-4_xsd Drilldown into LocReqd in schema fixml-crossorders-base-4-4_xsd Drilldown into PrevClsPx in schema fixml-crossorders-base-4-4_xsd Drilldown into ProcCode in schema fixml-crossorders-base-4-4_xsd Drilldown into ExDest in schema fixml-crossorders-base-4-4_xsd Drilldown into MaxFloor in schema fixml-crossorders-base-4-4_xsd Drilldown into MinQty in schema fixml-crossorders-base-4-4_xsd Drilldown into ExecInst in schema fixml-crossorders-base-4-4_xsd Drilldown into HandlInst in schema fixml-crossorders-base-4-4_xsd Drilldown into SettlDt in schema fixml-crossorders-base-4-4_xsd Drilldown into SettlTyp in schema fixml-crossorders-base-4-4_xsd Drilldown into Priorty in schema fixml-crossorders-base-4-4_xsd Drilldown into Typ in schema fixml-crossorders-base-4-4_xsd Drilldown into ID in schema fixml-crossorders-base-4-4_xsdXSD Diagram of NewOrderCrossAttributes in schema fixml-crossorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="NewOrderCrossAttributes">
    <xs:attribute name="ID" type="CrossID_t" use="required" />
    <xs:attribute name="Typ" type="CrossType_t" use="required" />
    <xs:attribute name="Priorty" type="CrossPrioritization_t" use="required" />
    <xs:attribute name="SettlTyp" type="SettlType_t" use="optional" />
    <xs:attribute name="SettlDt" type="SettlDate_t" use="optional" />
    <xs:attribute name="HandlInst" type="HandlInst_t" use="optional" />
    <xs:attribute name="ExecInst" type="ExecInst_t" use="optional" />
    <xs:attribute name="MinQty" type="MinQty_t" use="optional" />
    <xs:attribute name="MaxFloor" type="MaxFloor_t" use="optional" />
    <xs:attribute name="ExDest" type="ExDestination_t" use="optional" />
    <xs:attribute name="ProcCode" type="ProcessCode_t" use="optional" />
    <xs:attribute name="PrevClsPx" type="PrevClosePx_t" use="optional" />
    <xs:attribute name="LocReqd" type="LocateReqd_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="OrdTyp" type="OrdType_t" use="required" />
    <xs:attribute name="PxTyp" type="PriceType_t" use="optional" />
    <xs:attribute name="Px" type="Price_t" use="optional" />
    <xs:attribute name="StopPx" type="StopPx_t" use="optional" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="ComplianceID" type="ComplianceID_t" use="optional" />
    <xs:attribute name="IOIID" type="IOIID_t" use="optional" />
    <xs:attribute name="QID" type="QuoteID_t" use="optional" />
    <xs:attribute name="TmInForce" type="TimeInForce_t" use="optional" />
    <xs:attribute name="EfctvTm" type="EffectiveTime_t" use="optional" />
    <xs:attribute name="ExpireDt" type="ExpireDate_t" use="optional" />
    <xs:attribute name="ExpireTm" type="ExpireTime_t" use="optional" />
    <xs:attribute name="GTBkngInst" type="GTBookingInst_t" use="optional" />
    <xs:attribute name="MaxShow" type="MaxShow_t" use="optional" />
    <xs:attribute name="TgtStrategy" type="TargetStrategy_t" use="optional" />
    <xs:attribute name="TgtStrategyParameters" type="TargetStrategyParameters_t" use="optional" />
    <xs:attribute name="ParticipationRt" type="ParticipationRate_t" use="optional" />
    <xs:attribute name="CxllationRights" type="CancellationRights_t" use="optional" />
    <xs:attribute name="MnyLaunderingStat" type="MoneyLaunderingStatus_t" use="optional" />
    <xs:attribute name="RegistID" type="RegistID_t" use="optional" />
    <xs:attribute name="Designation" type="Designation_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
Typ nsA:Typ Required
Priorty nsA:Priorty Required
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
HandlInst nsA:HandlInst Optional
ExecInst nsA:ExecInst Optional
MinQty nsA:MinQty Optional
MaxFloor nsA:MaxFloor Optional
ExDest nsA:ExDest Optional
ProcCode nsA:ProcCode Optional
PrevClsPx nsA:PrevClsPx Optional
LocReqd nsA:LocReqd Optional
TxnTm nsA:TxnTm Required
OrdTyp nsA:OrdTyp Required
PxTyp nsA:PxTyp Optional
Px nsA:Px Optional
StopPx nsA:StopPx Optional
Ccy nsA:Ccy Optional
ComplianceID nsA:ComplianceID Optional
IOIID nsA:IOIID Optional
QID nsA:QID Optional
TmInForce nsA:TmInForce Optional
EfctvTm nsA:EfctvTm Optional
ExpireDt nsA:ExpireDt Optional
ExpireTm nsA:ExpireTm Optional
GTBkngInst nsA:GTBkngInst Optional
MaxShow nsA:MaxShow Optional
TgtStrategy nsA:TgtStrategy Optional
TgtStrategyParameters nsA:TgtStrategyParameters Optional
ParticipationRt nsA:ParticipationRt Optional
CxllationRights nsA:CxllationRights Optional
MnyLaunderingStat nsA:MnyLaunderingStat Optional
RegistID nsA:RegistID Optional
Designation nsA:Designation Optional
