Definition Type: ComplexType
Name: NewOrderList_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-listorders-base-4-4.xsd
Abstract
Documentation:
NewOrderList can be found in Volume4 of the specification

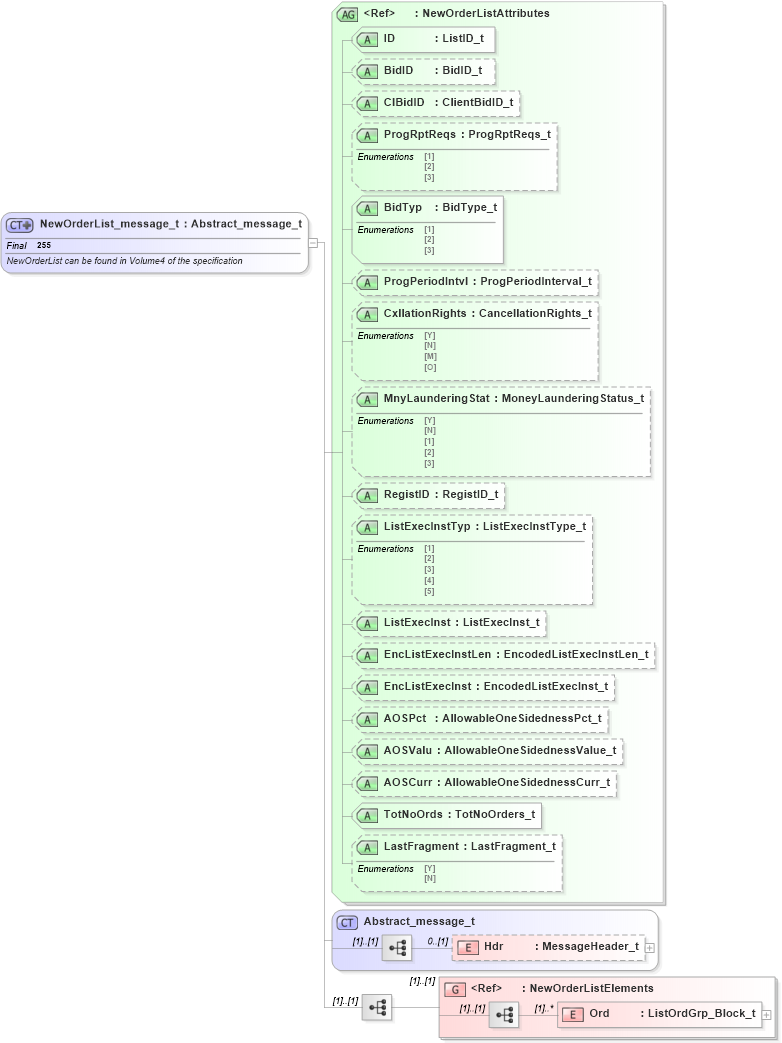

Collapse XSD Schema Diagram:
Drilldown into Ord in schema fixml-listorders-base-4-4_xsd Drilldown into NewOrderListElements in schema fixml-listorders-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into LastFragment in schema fixml-listorders-base-4-4_xsd Drilldown into TotNoOrds in schema fixml-listorders-base-4-4_xsd Drilldown into AOSCurr in schema fixml-listorders-base-4-4_xsd Drilldown into AOSValu in schema fixml-listorders-base-4-4_xsd Drilldown into AOSPct in schema fixml-listorders-base-4-4_xsd Drilldown into EncListExecInst in schema fixml-listorders-base-4-4_xsd Drilldown into EncListExecInstLen in schema fixml-listorders-base-4-4_xsd Drilldown into ListExecInst in schema fixml-listorders-base-4-4_xsd Drilldown into ListExecInstTyp in schema fixml-listorders-base-4-4_xsd Drilldown into RegistID in schema fixml-listorders-base-4-4_xsd Drilldown into MnyLaunderingStat in schema fixml-listorders-base-4-4_xsd Drilldown into CxllationRights in schema fixml-listorders-base-4-4_xsd Drilldown into ProgPeriodIntvl in schema fixml-listorders-base-4-4_xsd Drilldown into BidTyp in schema fixml-listorders-base-4-4_xsd Drilldown into ProgRptReqs in schema fixml-listorders-base-4-4_xsd Drilldown into ClBidID in schema fixml-listorders-base-4-4_xsd Drilldown into BidID in schema fixml-listorders-base-4-4_xsd Drilldown into ID in schema fixml-listorders-base-4-4_xsd Drilldown into NewOrderListAttributes in schema fixml-listorders-base-4-4_xsdXSD Diagram of NewOrderList_message_t in schema fixml-listorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="NewOrderList_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">NewOrderList can be found in Volume4 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="NewOrderList" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="NewOrderListElements" />
            </xs:sequence>
            <xs:attributeGroup ref="NewOrderListAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Ord nsA:Ord (1) unbounded
<xs:group> nsA:NewOrderListElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
BidID nsA:BidID Optional
ClBidID nsA:ClBidID Optional
ProgRptReqs nsA:ProgRptReqs Optional
BidTyp nsA:BidTyp Required
ProgPeriodIntvl nsA:ProgPeriodIntvl Optional
CxllationRights nsA:CxllationRights Optional
MnyLaunderingStat nsA:MnyLaunderingStat Optional
RegistID nsA:RegistID Optional
ListExecInstTyp nsA:ListExecInstTyp Optional
ListExecInst nsA:ListExecInst Optional
EncListExecInstLen nsA:EncListExecInstLen Optional
EncListExecInst nsA:EncListExecInst Optional
AOSPct nsA:AOSPct Optional
AOSValu nsA:AOSValu Optional
AOSCurr nsA:AOSCurr Optional
TotNoOrds nsA:TotNoOrds Required
LastFragment nsA:LastFragment Optional
Collapse Derivation Tree:
Collapse References:
nsA:NewOrdList
