Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: NewOrderMultilegElements
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-multilegorders-base-4-4.xsd
Collapse XSD Schema Diagram:

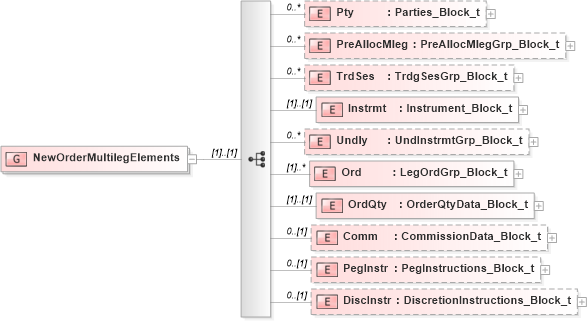

Drilldown into DiscInstr in schema fixml-multilegorders-base-4-4_xsd Drilldown into PegInstr in schema fixml-multilegorders-base-4-4_xsd Drilldown into Comm in schema fixml-multilegorders-base-4-4_xsd Drilldown into OrdQty in schema fixml-multilegorders-base-4-4_xsd Drilldown into Ord in schema fixml-multilegorders-base-4-4_xsd Drilldown into Undly in schema fixml-multilegorders-base-4-4_xsd Drilldown into Instrmt in schema fixml-multilegorders-base-4-4_xsd Drilldown into TrdSes in schema fixml-multilegorders-base-4-4_xsd Drilldown into PreAllocMleg in schema fixml-multilegorders-base-4-4_xsd Drilldown into Pty in schema fixml-multilegorders-base-4-4_xsdXSD Diagram of NewOrderMultilegElements in schema fixml-multilegorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="NewOrderMultilegElements">
    <xs:sequence>
        <xs:element name="Pty" type="Parties_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="PreAllocMleg" type="PreAllocMlegGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdSes" type="TrdgSesGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Instrmt" type="Instrument_Block_t" />
        <xs:element name="Undly" type="UndInstrmtGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="Ord" type="LegOrdGrp_Block_t" maxOccurs="unbounded" />
        <xs:element name="OrdQty" type="OrderQtyData_Block_t" />
        <xs:element name="Comm" type="CommissionData_Block_t" minOccurs="0" />
        <xs:element name="PegInstr" type="PegInstructions_Block_t" minOccurs="0" />
        <xs:element name="DiscInstr" type="DiscretionInstructions_Block_t" minOccurs="0" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
PreAllocMleg nsA:PreAllocMleg 0 unbounded
TrdSes nsA:TrdSes 0 unbounded
Instrmt nsA:Instrmt (1) (1)
Undly nsA:Undly 0 unbounded
Ord nsA:Ord (1) unbounded
OrdQty nsA:OrdQty (1) (1)
Comm nsA:Comm 0 (1)
PegInstr nsA:PegInstr 0 (1)
DiscInstr nsA:DiscInstr 0 (1)
