Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: NewOrderSingle_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-order-base-4-4.xsd
Abstract
Documentation:
NewOrderSingle can be found in Volume4 of the specification

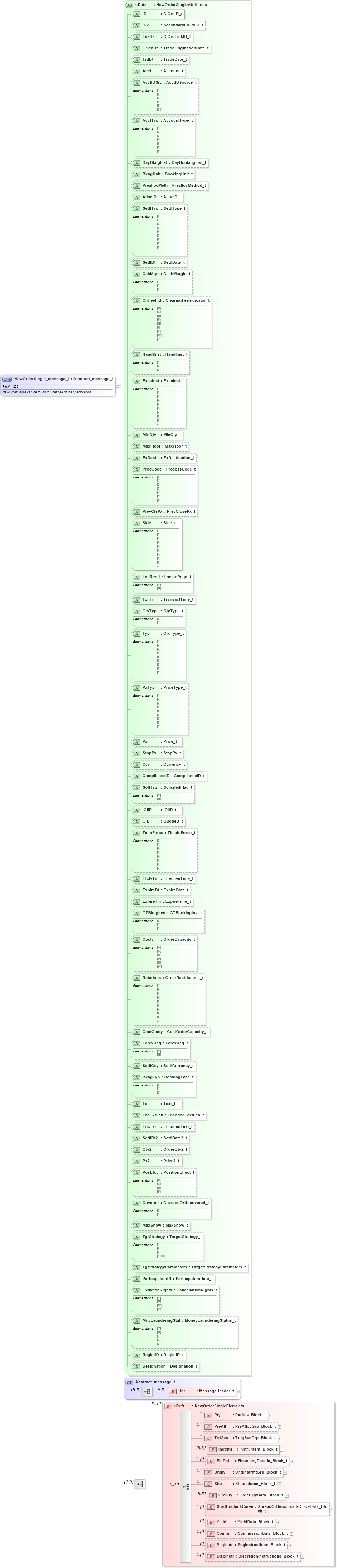

Collapse XSD Schema Diagram:
Drilldown into DiscInstr in schema fixml-order-base-4-4_xsd Drilldown into PegInstr in schema fixml-order-base-4-4_xsd Drilldown into Comm in schema fixml-order-base-4-4_xsd Drilldown into Yield in schema fixml-order-base-4-4_xsd Drilldown into SprdBnchmkCurve in schema fixml-order-base-4-4_xsd Drilldown into OrdQty in schema fixml-order-base-4-4_xsd Drilldown into Stip in schema fixml-order-base-4-4_xsd Drilldown into Undly in schema fixml-order-base-4-4_xsd Drilldown into FinDetls in schema fixml-order-base-4-4_xsd Drilldown into Instrmt in schema fixml-order-base-4-4_xsd Drilldown into TrdSes in schema fixml-order-base-4-4_xsd Drilldown into PreAll in schema fixml-order-base-4-4_xsd Drilldown into Pty in schema fixml-order-base-4-4_xsd Drilldown into NewOrderSingleElements in schema fixml-order-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into Designation in schema fixml-order-base-4-4_xsd Drilldown into RegistID in schema fixml-order-base-4-4_xsd Drilldown into MnyLaunderingStat in schema fixml-order-base-4-4_xsd Drilldown into CxllationRights in schema fixml-order-base-4-4_xsd Drilldown into ParticipationRt in schema fixml-order-base-4-4_xsd Drilldown into TgtStrategyParameters in schema fixml-order-base-4-4_xsd Drilldown into TgtStrategy in schema fixml-order-base-4-4_xsd Drilldown into MaxShow in schema fixml-order-base-4-4_xsd Drilldown into Covered in schema fixml-order-base-4-4_xsd Drilldown into PosEfct in schema fixml-order-base-4-4_xsd Drilldown into Px2 in schema fixml-order-base-4-4_xsd Drilldown into Qty2 in schema fixml-order-base-4-4_xsd Drilldown into SettlDt2 in schema fixml-order-base-4-4_xsd Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into BkngTyp in schema fixml-order-base-4-4_xsd Drilldown into SettlCcy in schema fixml-order-base-4-4_xsd Drilldown into ForexReq in schema fixml-order-base-4-4_xsd Drilldown into CustCpcty in schema fixml-order-base-4-4_xsd Drilldown into Rstctions in schema fixml-order-base-4-4_xsd Drilldown into Cpcty in schema fixml-order-base-4-4_xsd Drilldown into GTBkngInst in schema fixml-order-base-4-4_xsd Drilldown into ExpireTm in schema fixml-order-base-4-4_xsd Drilldown into ExpireDt in schema fixml-order-base-4-4_xsd Drilldown into EfctvTm in schema fixml-order-base-4-4_xsd Drilldown into TmInForce in schema fixml-order-base-4-4_xsd Drilldown into QID in schema fixml-order-base-4-4_xsd Drilldown into IOIID in schema fixml-order-base-4-4_xsd Drilldown into SolFlag in schema fixml-order-base-4-4_xsd Drilldown into ComplianceID in schema fixml-order-base-4-4_xsd Drilldown into Ccy in schema fixml-order-base-4-4_xsd Drilldown into StopPx in schema fixml-order-base-4-4_xsd Drilldown into Px in schema fixml-order-base-4-4_xsd Drilldown into PxTyp in schema fixml-order-base-4-4_xsd Drilldown into Typ in schema fixml-order-base-4-4_xsd Drilldown into QtyTyp in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into LocReqd in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into PrevClsPx in schema fixml-order-base-4-4_xsd Drilldown into ProcCode in schema fixml-order-base-4-4_xsd Drilldown into ExDest in schema fixml-order-base-4-4_xsd Drilldown into MaxFloor in schema fixml-order-base-4-4_xsd Drilldown into MinQty in schema fixml-order-base-4-4_xsd Drilldown into ExecInst in schema fixml-order-base-4-4_xsd Drilldown into HandlInst in schema fixml-order-base-4-4_xsd Drilldown into ClrFeeInd in schema fixml-order-base-4-4_xsd Drilldown into CshMgn in schema fixml-order-base-4-4_xsd Drilldown into SettlDt in schema fixml-order-base-4-4_xsd Drilldown into SettlTyp in schema fixml-order-base-4-4_xsd Drilldown into AllocID in schema fixml-order-base-4-4_xsd Drilldown into PreallocMeth in schema fixml-order-base-4-4_xsd Drilldown into BkngUnit in schema fixml-order-base-4-4_xsd Drilldown into DayBkngInst in schema fixml-order-base-4-4_xsd Drilldown into AcctTyp in schema fixml-order-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-order-base-4-4_xsd Drilldown into Acct in schema fixml-order-base-4-4_xsd Drilldown into TrdDt in schema fixml-order-base-4-4_xsd Drilldown into OrignDt in schema fixml-order-base-4-4_xsd Drilldown into LnkID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into NewOrderSingleAttributes in schema fixml-order-base-4-4_xsdXSD Diagram of NewOrderSingle_message_t in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="NewOrderSingle_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">NewOrderSingle can be found in Volume4 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="NewOrderSingle" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="NewOrderSingleElements" />
            </xs:sequence>
            <xs:attributeGroup ref="NewOrderSingleAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
PreAll nsA:PreAll 0 unbounded
TrdSes nsA:TrdSes 0 unbounded
Instrmt nsA:Instrmt (1) (1)
FinDetls nsA:FinDetls 0 (1)
Undly nsA:Undly 0 unbounded
Stip nsA:Stip 0 unbounded
OrdQty nsA:OrdQty (1) (1)
SprdBnchmkCurve nsA:SprdBnchmkCurve 0 (1)
Yield nsA:Yield 0 (1)
Comm nsA:Comm 0 (1)
PegInstr nsA:PegInstr 0 (1)
DiscInstr nsA:DiscInstr 0 (1)
<xs:group> nsA:NewOrderSingleElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
ID2 nsA:ID2 Optional
LnkID nsA:LnkID Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
DayBkngInst nsA:DayBkngInst Optional
BkngUnit nsA:BkngUnit Optional
PreallocMeth nsA:PreallocMeth Optional
AllocID nsA:AllocID Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
CshMgn nsA:CshMgn Optional
ClrFeeInd nsA:ClrFeeInd Optional
HandlInst nsA:HandlInst Optional
ExecInst nsA:ExecInst Optional
MinQty nsA:MinQty Optional
MaxFloor nsA:MaxFloor Optional
ExDest nsA:ExDest Optional
ProcCode nsA:ProcCode Optional
PrevClsPx nsA:PrevClsPx Optional
Side nsA:Side Required
LocReqd nsA:LocReqd Optional
TxnTm nsA:TxnTm Required
QtyTyp nsA:QtyTyp Optional
Typ nsA:Typ Required
PxTyp nsA:PxTyp Optional
Px nsA:Px Optional
StopPx nsA:StopPx Optional
Ccy nsA:Ccy Optional
ComplianceID nsA:ComplianceID Optional
SolFlag nsA:SolFlag Optional
IOIID nsA:IOIID Optional
QID nsA:QID Optional
TmInForce nsA:TmInForce Optional
EfctvTm nsA:EfctvTm Optional
ExpireDt nsA:ExpireDt Optional
ExpireTm nsA:ExpireTm Optional
GTBkngInst nsA:GTBkngInst Optional
Cpcty nsA:Cpcty Optional
Rstctions nsA:Rstctions Optional
CustCpcty nsA:CustCpcty Optional
ForexReq nsA:ForexReq Optional
SettlCcy nsA:SettlCcy Optional
BkngTyp nsA:BkngTyp Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
SettlDt2 nsA:SettlDt2 Optional
Qty2 nsA:Qty2 Optional
Px2 nsA:Px2 Optional
PosEfct nsA:PosEfct Optional
Covered nsA:Covered Optional
MaxShow nsA:MaxShow Optional
TgtStrategy nsA:TgtStrategy Optional
TgtStrategyParameters nsA:TgtStrategyParameters Optional
ParticipationRt nsA:ParticipationRt Optional
CxllationRights nsA:CxllationRights Optional
MnyLaunderingStat nsA:MnyLaunderingStat Optional
RegistID nsA:RegistID Optional
Designation nsA:Designation Optional
Collapse Derivation Tree:
Collapse References:
nsA:Order
