Definition Type: ComplexType
Name: NstdPtys3SubGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
NstdPtys3SubGrp is a component
Collapse XSD Schema Diagram:

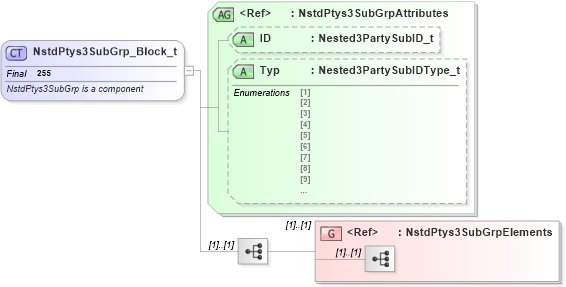

Drilldown into NstdPtys3SubGrpElements in schema fixml-components-base-4-4_xsd Drilldown into Typ in schema fixml-components-base-4-4_xsd Drilldown into ID in schema fixml-components-base-4-4_xsd Drilldown into NstdPtys3SubGrpAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of NstdPtys3SubGrp_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="NstdPtys3SubGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">NstdPtys3SubGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="NstdPtys3SubGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="NstdPtys3SubGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="NstdPtys3SubGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:NstdPtys3SubGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Optional
Typ nsA:Typ Optional
Collapse Derivation Tree:
  • NstdPtys3SubGrp_Block_t
Collapse References:
nsA:Sub
