Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: OrdCxlReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:OrderCancelRequest_message_t
Containing Schema: fixml-order-base-4-4.xsd
Abstract

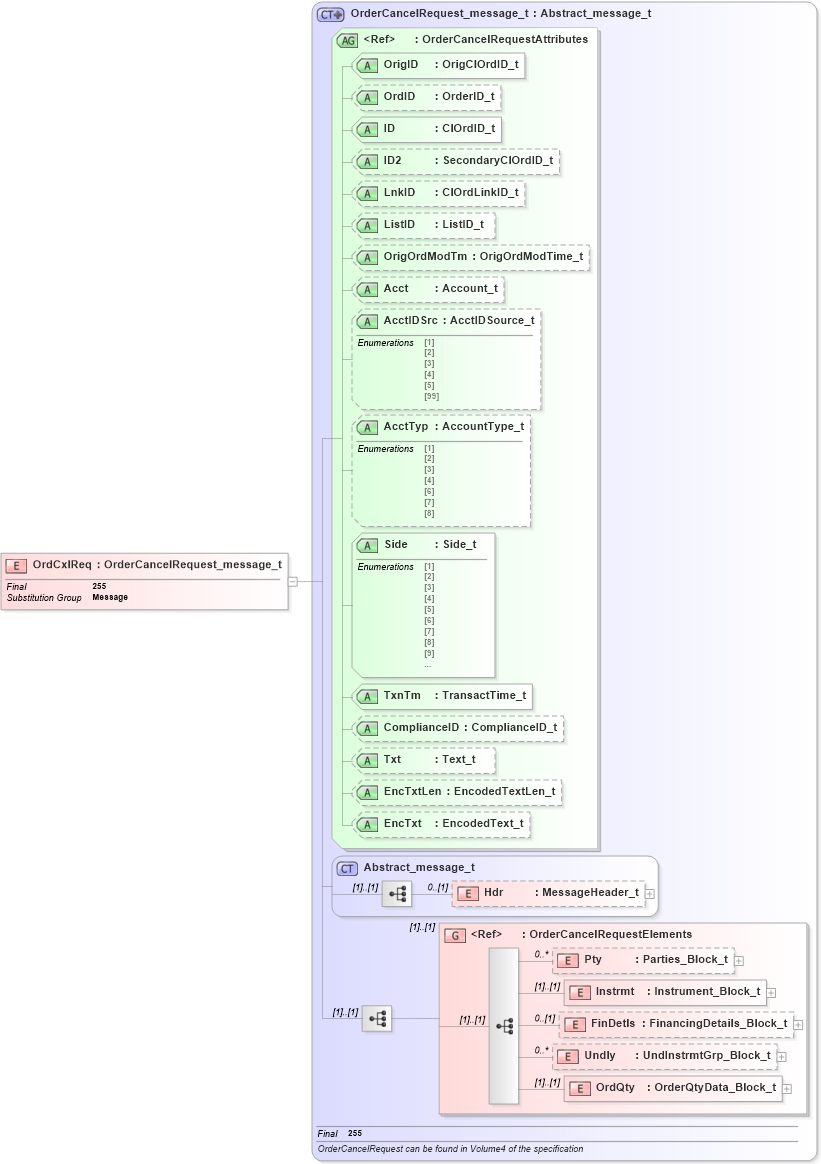

Collapse XSD Schema Diagram:
Drilldown into OrdQty in schema fixml-order-base-4-4_xsd Drilldown into Undly in schema fixml-order-base-4-4_xsd Drilldown into FinDetls in schema fixml-order-base-4-4_xsd Drilldown into Instrmt in schema fixml-order-base-4-4_xsd Drilldown into Pty in schema fixml-order-base-4-4_xsd Drilldown into OrderCancelRequestElements in schema fixml-order-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into ComplianceID in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into AcctTyp in schema fixml-order-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-order-base-4-4_xsd Drilldown into Acct in schema fixml-order-base-4-4_xsd Drilldown into OrigOrdModTm in schema fixml-order-base-4-4_xsd Drilldown into ListID in schema fixml-order-base-4-4_xsd Drilldown into LnkID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsd Drilldown into OrigID in schema fixml-order-base-4-4_xsd Drilldown into OrderCancelRequestAttributes in schema fixml-order-base-4-4_xsd Drilldown into OrderCancelRequest_message_t in schema fixml-order-base-4-4_xsdXSD Diagram of OrdCxlReq in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="OrdCxlReq" type="OrderCancelRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
Instrmt nsA:Instrmt (1) (1)
FinDetls nsA:FinDetls 0 (1)
Undly nsA:Undly 0 unbounded
OrdQty nsA:OrdQty (1) (1)
<xs:group> nsA:OrderCancelRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrigID nsA:OrigID Required
OrdID nsA:OrdID Optional
ID nsA:ID Required
ID2 nsA:ID2 Optional
LnkID nsA:LnkID Optional
ListID nsA:ListID Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
Side nsA:Side Required
TxnTm nsA:TxnTm Required
ComplianceID nsA:ComplianceID Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
