Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: OrderCancelRejectAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-order-base-4-4.xsd

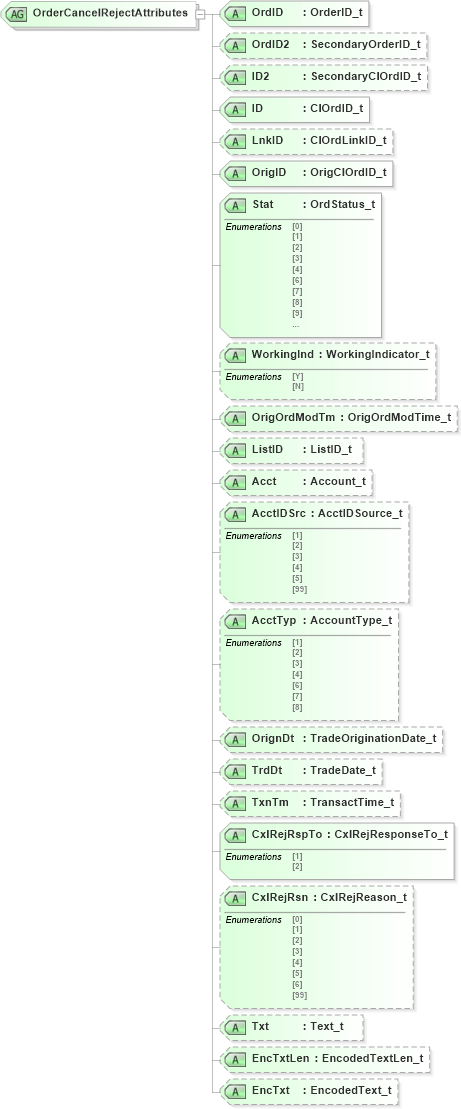

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into CxlRejRsn in schema fixml-order-base-4-4_xsd Drilldown into CxlRejRspTo in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into TrdDt in schema fixml-order-base-4-4_xsd Drilldown into OrignDt in schema fixml-order-base-4-4_xsd Drilldown into AcctTyp in schema fixml-order-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-order-base-4-4_xsd Drilldown into Acct in schema fixml-order-base-4-4_xsd Drilldown into ListID in schema fixml-order-base-4-4_xsd Drilldown into OrigOrdModTm in schema fixml-order-base-4-4_xsd Drilldown into WorkingInd in schema fixml-order-base-4-4_xsd Drilldown into Stat in schema fixml-order-base-4-4_xsd Drilldown into OrigID in schema fixml-order-base-4-4_xsd Drilldown into LnkID in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into OrdID2 in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsdXSD Diagram of OrderCancelRejectAttributes in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="OrderCancelRejectAttributes">
    <xs:attribute name="OrdID" type="OrderID_t" use="required" />
    <xs:attribute name="OrdID2" type="SecondaryOrderID_t" use="optional" />
    <xs:attribute name="ID2" type="SecondaryClOrdID_t" use="optional" />
    <xs:attribute name="ID" type="ClOrdID_t" use="required" />
    <xs:attribute name="LnkID" type="ClOrdLinkID_t" use="optional" />
    <xs:attribute name="OrigID" type="OrigClOrdID_t" use="required" />
    <xs:attribute name="Stat" type="OrdStatus_t" use="required" />
    <xs:attribute name="WorkingInd" type="WorkingIndicator_t" use="optional" />
    <xs:attribute name="OrigOrdModTm" type="OrigOrdModTime_t" use="optional" />
    <xs:attribute name="ListID" type="ListID_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="optional" />
    <xs:attribute name="OrignDt" type="TradeOriginationDate_t" use="optional" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="optional" />
    <xs:attribute name="CxlRejRspTo" type="CxlRejResponseTo_t" use="required" />
    <xs:attribute name="CxlRejRsn" type="CxlRejReason_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Required
OrdID2 nsA:OrdID2 Optional
ID2 nsA:ID2 Optional
ID nsA:ID Required
LnkID nsA:LnkID Optional
OrigID nsA:OrigID Required
Stat nsA:Stat Required
WorkingInd nsA:WorkingInd Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
ListID nsA:ListID Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
TxnTm nsA:TxnTm Optional
CxlRejRspTo nsA:CxlRejRspTo Required
CxlRejRsn nsA:CxlRejRsn Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
