Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: OrderCancelRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-order-base-4-4.xsd

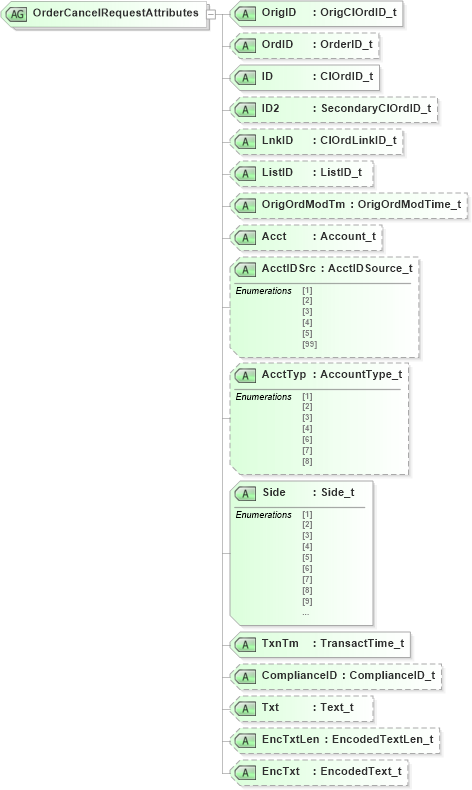

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into ComplianceID in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into AcctTyp in schema fixml-order-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-order-base-4-4_xsd Drilldown into Acct in schema fixml-order-base-4-4_xsd Drilldown into OrigOrdModTm in schema fixml-order-base-4-4_xsd Drilldown into ListID in schema fixml-order-base-4-4_xsd Drilldown into LnkID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsd Drilldown into OrigID in schema fixml-order-base-4-4_xsdXSD Diagram of OrderCancelRequestAttributes in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="OrderCancelRequestAttributes">
    <xs:attribute name="OrigID" type="OrigClOrdID_t" use="required" />
    <xs:attribute name="OrdID" type="OrderID_t" use="optional" />
    <xs:attribute name="ID" type="ClOrdID_t" use="required" />
    <xs:attribute name="ID2" type="SecondaryClOrdID_t" use="optional" />
    <xs:attribute name="LnkID" type="ClOrdLinkID_t" use="optional" />
    <xs:attribute name="ListID" type="ListID_t" use="optional" />
    <xs:attribute name="OrigOrdModTm" type="OrigOrdModTime_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="optional" />
    <xs:attribute name="Side" type="Side_t" use="required" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="ComplianceID" type="ComplianceID_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
OrigID nsA:OrigID Required
OrdID nsA:OrdID Optional
ID nsA:ID Required
ID2 nsA:ID2 Optional
LnkID nsA:LnkID Optional
ListID nsA:ListID Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
Side nsA:Side Required
TxnTm nsA:TxnTm Required
ComplianceID nsA:ComplianceID Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
