Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: OrderMassCancelRequestAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-order-base-4-4.xsd

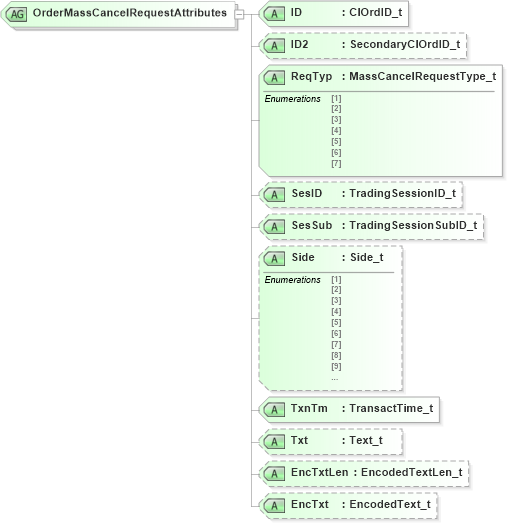

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-order-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-order-base-4-4_xsd Drilldown into Txt in schema fixml-order-base-4-4_xsd Drilldown into TxnTm in schema fixml-order-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into SesSub in schema fixml-order-base-4-4_xsd Drilldown into SesID in schema fixml-order-base-4-4_xsd Drilldown into ReqTyp in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsdXSD Diagram of OrderMassCancelRequestAttributes in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="OrderMassCancelRequestAttributes">
    <xs:attribute name="ID" type="ClOrdID_t" use="required" />
    <xs:attribute name="ID2" type="SecondaryClOrdID_t" use="optional" />
    <xs:attribute name="ReqTyp" type="MassCancelRequestType_t" use="required" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
    <xs:attribute name="Side" type="Side_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
ID2 nsA:ID2 Optional
ReqTyp nsA:ReqTyp Required
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Side nsA:Side Optional
TxnTm nsA:TxnTm Required
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
