Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: OrderQtyData_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
OrderQtyData is a component

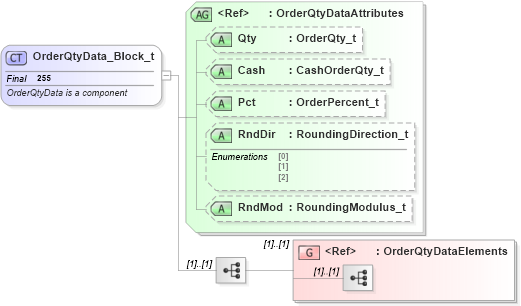

Collapse XSD Schema Diagram:
Drilldown into OrderQtyDataElements in schema fixml-components-base-4-4_xsd Drilldown into RndMod in schema fixml-components-base-4-4_xsd Drilldown into RndDir in schema fixml-components-base-4-4_xsd Drilldown into Pct in schema fixml-components-base-4-4_xsd Drilldown into Cash in schema fixml-components-base-4-4_xsd Drilldown into Qty in schema fixml-components-base-4-4_xsd Drilldown into OrderQtyDataAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of OrderQtyData_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="OrderQtyData_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">OrderQtyData is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="OrderQtyData" ComponentType="Block" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="OrderQtyDataElements" />
    </xs:sequence>
    <xs:attributeGroup ref="OrderQtyDataAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:OrderQtyDataElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Qty nsA:Qty Optional
Cash nsA:Cash Optional
Pct nsA:Pct Optional
RndDir nsA:RndDir Optional
RndMod nsA:RndMod Optional
Collapse Derivation Tree:
Collapse References:
nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQtynsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty, nsA:OrdQty,
