Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: OrdStatReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:OrderStatusRequest_message_t
Containing Schema: fixml-order-base-4-4.xsd
Abstract

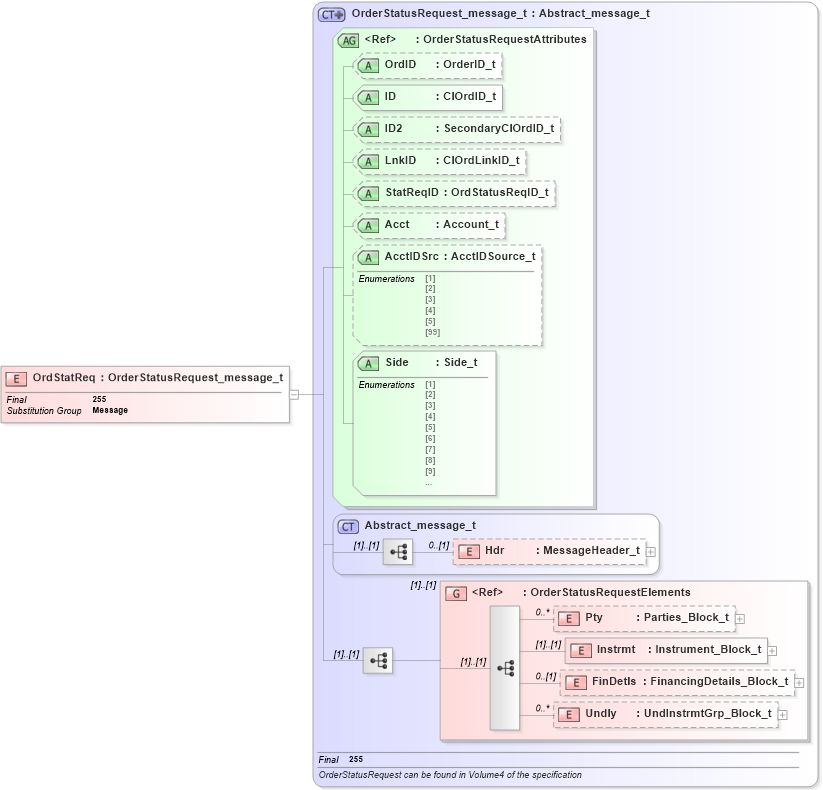

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-order-base-4-4_xsd Drilldown into FinDetls in schema fixml-order-base-4-4_xsd Drilldown into Instrmt in schema fixml-order-base-4-4_xsd Drilldown into Pty in schema fixml-order-base-4-4_xsd Drilldown into OrderStatusRequestElements in schema fixml-order-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into Side in schema fixml-order-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-order-base-4-4_xsd Drilldown into Acct in schema fixml-order-base-4-4_xsd Drilldown into StatReqID in schema fixml-order-base-4-4_xsd Drilldown into LnkID in schema fixml-order-base-4-4_xsd Drilldown into ID2 in schema fixml-order-base-4-4_xsd Drilldown into ID in schema fixml-order-base-4-4_xsd Drilldown into OrdID in schema fixml-order-base-4-4_xsd Drilldown into OrderStatusRequestAttributes in schema fixml-order-base-4-4_xsd Drilldown into OrderStatusRequest_message_t in schema fixml-order-base-4-4_xsdXSD Diagram of OrdStatReq in schema fixml-order-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="OrdStatReq" type="OrderStatusRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty 0 unbounded
Instrmt nsA:Instrmt (1) (1)
FinDetls nsA:FinDetls 0 (1)
Undly nsA:Undly 0 unbounded
<xs:group> nsA:OrderStatusRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
OrdID nsA:OrdID Optional
ID nsA:ID Required
ID2 nsA:ID2 Optional
LnkID nsA:LnkID Optional
StatReqID nsA:StatReqID Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
Side nsA:Side Required
Collapse Derivation Tree:
Collapse References:
nsA:Message
