Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: PositionReport_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-positions-base-4-4.xsd
Abstract
Documentation:
PositionReport can be found in Volume5 of the specification

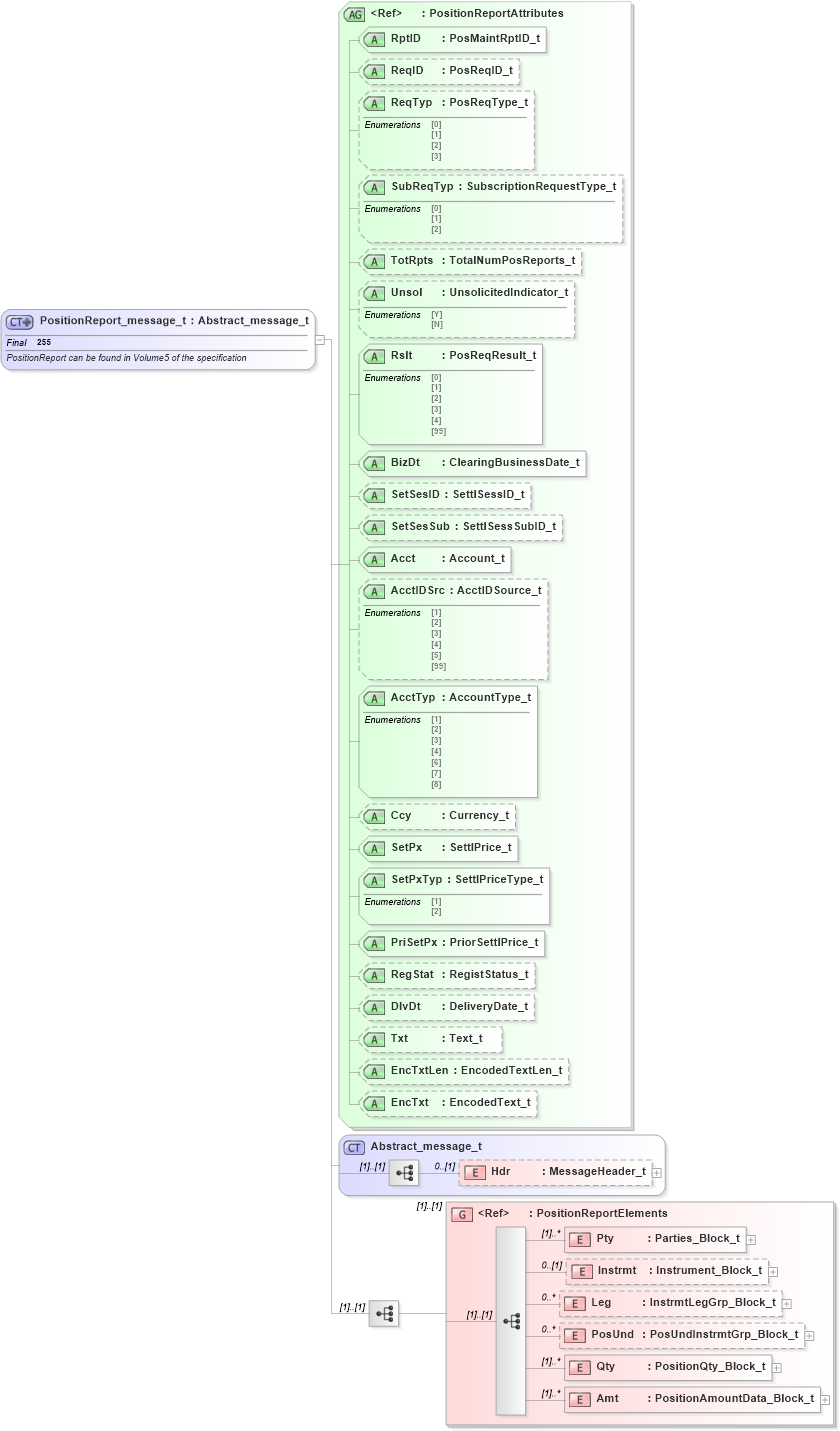

Collapse XSD Schema Diagram:
Drilldown into Amt in schema fixml-positions-base-4-4_xsd Drilldown into Qty in schema fixml-positions-base-4-4_xsd Drilldown into PosUnd in schema fixml-positions-base-4-4_xsd Drilldown into Leg in schema fixml-positions-base-4-4_xsd Drilldown into Instrmt in schema fixml-positions-base-4-4_xsd Drilldown into Pty in schema fixml-positions-base-4-4_xsd Drilldown into PositionReportElements in schema fixml-positions-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-positions-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-positions-base-4-4_xsd Drilldown into Txt in schema fixml-positions-base-4-4_xsd Drilldown into DlvDt in schema fixml-positions-base-4-4_xsd Drilldown into RegStat in schema fixml-positions-base-4-4_xsd Drilldown into PriSetPx in schema fixml-positions-base-4-4_xsd Drilldown into SetPxTyp in schema fixml-positions-base-4-4_xsd Drilldown into SetPx in schema fixml-positions-base-4-4_xsd Drilldown into Ccy in schema fixml-positions-base-4-4_xsd Drilldown into AcctTyp in schema fixml-positions-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-positions-base-4-4_xsd Drilldown into Acct in schema fixml-positions-base-4-4_xsd Drilldown into SetSesSub in schema fixml-positions-base-4-4_xsd Drilldown into SetSesID in schema fixml-positions-base-4-4_xsd Drilldown into BizDt in schema fixml-positions-base-4-4_xsd Drilldown into Rslt in schema fixml-positions-base-4-4_xsd Drilldown into Unsol in schema fixml-positions-base-4-4_xsd Drilldown into TotRpts in schema fixml-positions-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-positions-base-4-4_xsd Drilldown into ReqTyp in schema fixml-positions-base-4-4_xsd Drilldown into ReqID in schema fixml-positions-base-4-4_xsd Drilldown into RptID in schema fixml-positions-base-4-4_xsd Drilldown into PositionReportAttributes in schema fixml-positions-base-4-4_xsdXSD Diagram of PositionReport_message_t in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="PositionReport_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">PositionReport can be found in Volume5 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="PositionReport" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="PositionReportElements" />
            </xs:sequence>
            <xs:attributeGroup ref="PositionReportAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty (1) unbounded
Instrmt nsA:Instrmt 0 (1)
Leg nsA:Leg 0 unbounded
PosUnd nsA:PosUnd 0 unbounded
Qty nsA:Qty (1) unbounded
Amt nsA:Amt (1) unbounded
<xs:group> nsA:PositionReportElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ReqID nsA:ReqID Optional
ReqTyp nsA:ReqTyp Optional
SubReqTyp nsA:SubReqTyp Optional
TotRpts nsA:TotRpts Optional
Unsol nsA:Unsol Optional
Rslt nsA:Rslt Required
BizDt nsA:BizDt Required
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
Acct nsA:Acct Required
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Required
Ccy nsA:Ccy Optional
SetPx nsA:SetPx Required
SetPxTyp nsA:SetPxTyp Required
PriSetPx nsA:PriSetPx Required
RegStat nsA:RegStat Optional
DlvDt nsA:DlvDt Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:PosRpt
