Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: PositionReportAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-positions-base-4-4.xsd

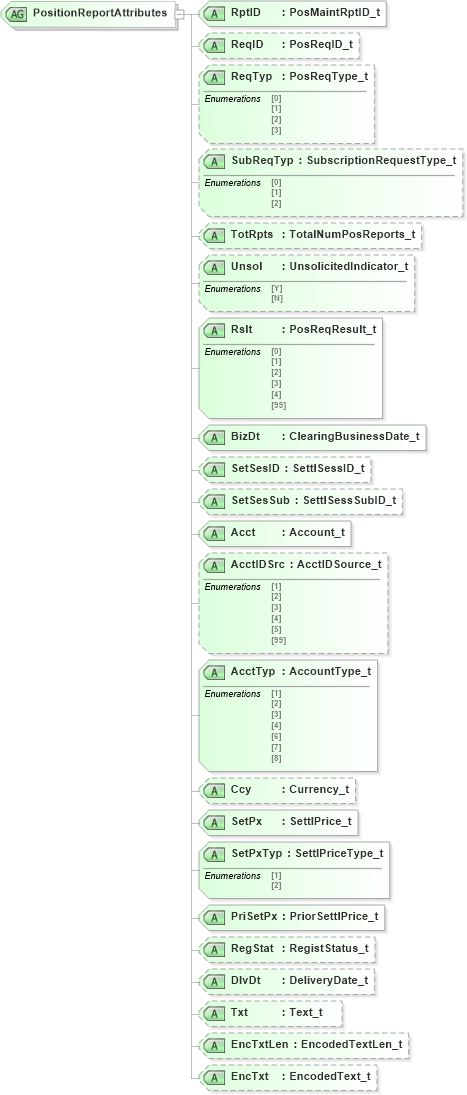

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-positions-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-positions-base-4-4_xsd Drilldown into Txt in schema fixml-positions-base-4-4_xsd Drilldown into DlvDt in schema fixml-positions-base-4-4_xsd Drilldown into RegStat in schema fixml-positions-base-4-4_xsd Drilldown into PriSetPx in schema fixml-positions-base-4-4_xsd Drilldown into SetPxTyp in schema fixml-positions-base-4-4_xsd Drilldown into SetPx in schema fixml-positions-base-4-4_xsd Drilldown into Ccy in schema fixml-positions-base-4-4_xsd Drilldown into AcctTyp in schema fixml-positions-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-positions-base-4-4_xsd Drilldown into Acct in schema fixml-positions-base-4-4_xsd Drilldown into SetSesSub in schema fixml-positions-base-4-4_xsd Drilldown into SetSesID in schema fixml-positions-base-4-4_xsd Drilldown into BizDt in schema fixml-positions-base-4-4_xsd Drilldown into Rslt in schema fixml-positions-base-4-4_xsd Drilldown into Unsol in schema fixml-positions-base-4-4_xsd Drilldown into TotRpts in schema fixml-positions-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-positions-base-4-4_xsd Drilldown into ReqTyp in schema fixml-positions-base-4-4_xsd Drilldown into ReqID in schema fixml-positions-base-4-4_xsd Drilldown into RptID in schema fixml-positions-base-4-4_xsdXSD Diagram of PositionReportAttributes in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="PositionReportAttributes">
    <xs:attribute name="RptID" type="PosMaintRptID_t" use="required" />
    <xs:attribute name="ReqID" type="PosReqID_t" use="optional" />
    <xs:attribute name="ReqTyp" type="PosReqType_t" use="optional" />
    <xs:attribute name="SubReqTyp" type="SubscriptionRequestType_t" use="optional" />
    <xs:attribute name="TotRpts" type="TotalNumPosReports_t" use="optional" />
    <xs:attribute name="Unsol" type="UnsolicitedIndicator_t" use="optional" />
    <xs:attribute name="Rslt" type="PosReqResult_t" use="required" />
    <xs:attribute name="BizDt" type="ClearingBusinessDate_t" use="required" />
    <xs:attribute name="SetSesID" type="SettlSessID_t" use="optional" />
    <xs:attribute name="SetSesSub" type="SettlSessSubID_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="required" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="required" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="SetPx" type="SettlPrice_t" use="required" />
    <xs:attribute name="SetPxTyp" type="SettlPriceType_t" use="required" />
    <xs:attribute name="PriSetPx" type="PriorSettlPrice_t" use="required" />
    <xs:attribute name="RegStat" type="RegistStatus_t" use="optional" />
    <xs:attribute name="DlvDt" type="DeliveryDate_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ReqID nsA:ReqID Optional
ReqTyp nsA:ReqTyp Optional
SubReqTyp nsA:SubReqTyp Optional
TotRpts nsA:TotRpts Optional
Unsol nsA:Unsol Optional
Rslt nsA:Rslt Required
BizDt nsA:BizDt Required
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
Acct nsA:Acct Required
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Required
Ccy nsA:Ccy Optional
SetPx nsA:SetPx Required
SetPxTyp nsA:SetPxTyp Required
PriSetPx nsA:PriSetPx Required
RegStat nsA:RegStat Optional
DlvDt nsA:DlvDt Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
