Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: PosMntReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:PositionMaintenanceRequest_message_t
Containing Schema: fixml-positions-base-4-4.xsd
Abstract

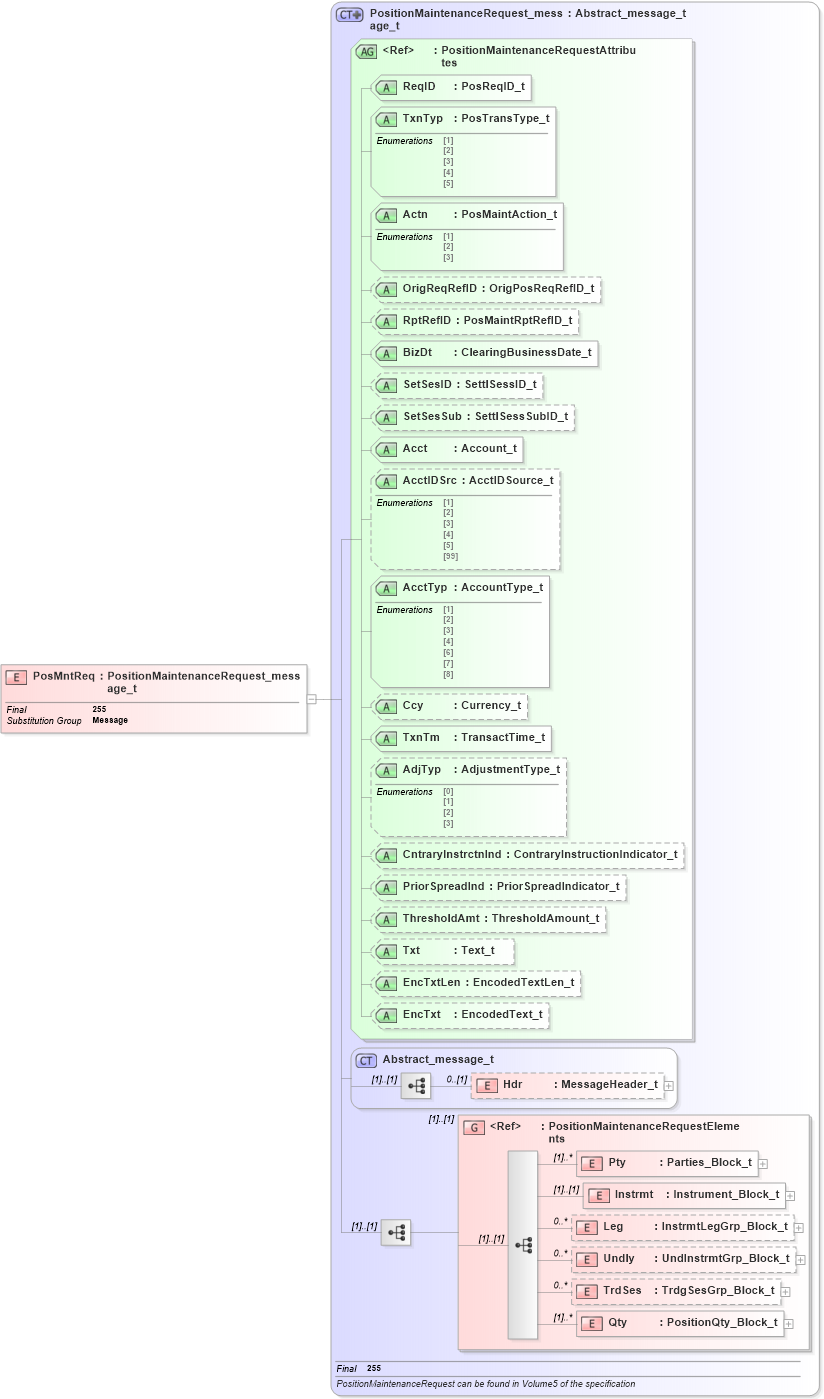

Collapse XSD Schema Diagram:
Drilldown into Qty in schema fixml-positions-base-4-4_xsd Drilldown into TrdSes in schema fixml-positions-base-4-4_xsd Drilldown into Undly in schema fixml-positions-base-4-4_xsd Drilldown into Leg in schema fixml-positions-base-4-4_xsd Drilldown into Instrmt in schema fixml-positions-base-4-4_xsd Drilldown into Pty in schema fixml-positions-base-4-4_xsd Drilldown into PositionMaintenanceRequestElements in schema fixml-positions-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-positions-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-positions-base-4-4_xsd Drilldown into Txt in schema fixml-positions-base-4-4_xsd Drilldown into ThresholdAmt in schema fixml-positions-base-4-4_xsd Drilldown into PriorSpreadInd in schema fixml-positions-base-4-4_xsd Drilldown into CntraryInstrctnInd in schema fixml-positions-base-4-4_xsd Drilldown into AdjTyp in schema fixml-positions-base-4-4_xsd Drilldown into TxnTm in schema fixml-positions-base-4-4_xsd Drilldown into Ccy in schema fixml-positions-base-4-4_xsd Drilldown into AcctTyp in schema fixml-positions-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-positions-base-4-4_xsd Drilldown into Acct in schema fixml-positions-base-4-4_xsd Drilldown into SetSesSub in schema fixml-positions-base-4-4_xsd Drilldown into SetSesID in schema fixml-positions-base-4-4_xsd Drilldown into BizDt in schema fixml-positions-base-4-4_xsd Drilldown into RptRefID in schema fixml-positions-base-4-4_xsd Drilldown into OrigReqRefID in schema fixml-positions-base-4-4_xsd Drilldown into Actn in schema fixml-positions-base-4-4_xsd Drilldown into TxnTyp in schema fixml-positions-base-4-4_xsd Drilldown into ReqID in schema fixml-positions-base-4-4_xsd Drilldown into PositionMaintenanceRequestAttributes in schema fixml-positions-base-4-4_xsd Drilldown into PositionMaintenanceRequest_message_t in schema fixml-positions-base-4-4_xsdXSD Diagram of PosMntReq in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="PosMntReq" type="PositionMaintenanceRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Pty nsA:Pty (1) unbounded
Instrmt nsA:Instrmt (1) (1)
Leg nsA:Leg 0 unbounded
Undly nsA:Undly 0 unbounded
TrdSes nsA:TrdSes 0 unbounded
Qty nsA:Qty (1) unbounded
<xs:group> nsA:PositionMaintenanceRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
TxnTyp nsA:TxnTyp Required
Actn nsA:Actn Required
OrigReqRefID nsA:OrigReqRefID Optional
RptRefID nsA:RptRefID Optional
BizDt nsA:BizDt Required
SetSesID nsA:SetSesID Optional
SetSesSub nsA:SetSesSub Optional
Acct nsA:Acct Required
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Required
Ccy nsA:Ccy Optional
TxnTm nsA:TxnTm Required
AdjTyp nsA:AdjTyp Optional
CntraryInstrctnInd nsA:CntraryInstrctnInd Optional
PriorSpreadInd nsA:PriorSpreadInd Optional
ThresholdAmt nsA:ThresholdAmt Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
