Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: PosUndInstrmtGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-positions-base-4-4.xsd
Abstract
Documentation:
PosUndInstrmtGrp is a component

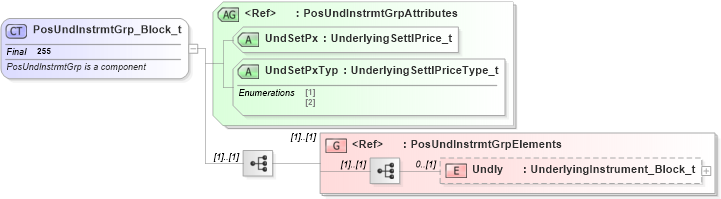

Collapse XSD Schema Diagram:
Drilldown into Undly in schema fixml-positions-base-4-4_xsd Drilldown into PosUndInstrmtGrpElements in schema fixml-positions-base-4-4_xsd Drilldown into UndSetPxTyp in schema fixml-positions-base-4-4_xsd Drilldown into UndSetPx in schema fixml-positions-base-4-4_xsd Drilldown into PosUndInstrmtGrpAttributes in schema fixml-positions-base-4-4_xsdXSD Diagram of PosUndInstrmtGrp_Block_t in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="PosUndInstrmtGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">PosUndInstrmtGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="PosUndInstrmtGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="PosUndInstrmtGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="PosUndInstrmtGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Undly nsA:Undly 0 (1)
<xs:group> nsA:PosUndInstrmtGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
UndSetPx nsA:UndSetPx Required
UndSetPxTyp nsA:UndSetPxTyp Required
Collapse Derivation Tree:
Collapse References:
nsA:PosUnd
