Definition Type: Element
Name: PreAll
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:LegPreAllocGrp_Block_t
Containing Schema: fixml-multilegorders-base-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

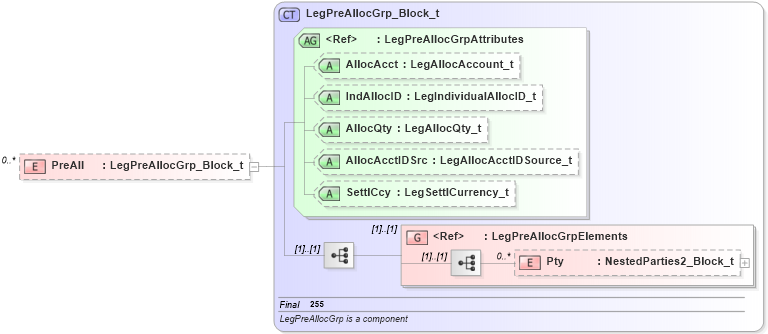

Drilldown into Pty in schema fixml-multilegorders-base-4-4_xsd Drilldown into LegPreAllocGrpElements in schema fixml-multilegorders-base-4-4_xsd Drilldown into SettlCcy in schema fixml-multilegorders-base-4-4_xsd Drilldown into AllocAcctIDSrc in schema fixml-multilegorders-base-4-4_xsd Drilldown into AllocQty in schema fixml-multilegorders-base-4-4_xsd Drilldown into IndAllocID in schema fixml-multilegorders-base-4-4_xsd Drilldown into AllocAcct in schema fixml-multilegorders-base-4-4_xsd Drilldown into LegPreAllocGrpAttributes in schema fixml-multilegorders-base-4-4_xsd Drilldown into LegPreAllocGrp_Block_t in schema fixml-multilegorders-base-4-4_xsdXSD Diagram of PreAll in schema fixml-multilegorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="PreAll" type="LegPreAllocGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
<xs:group> nsA:LegPreAllocGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
AllocAcct nsA:AllocAcct Optional
IndAllocID nsA:IndAllocID Optional
AllocQty nsA:AllocQty Optional
AllocAcctIDSrc nsA:AllocAcctIDSrc Optional
SettlCcy nsA:SettlCcy Optional
Collapse Derivation Tree:
