Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: PreAllocGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
PreAllocGrp is a component

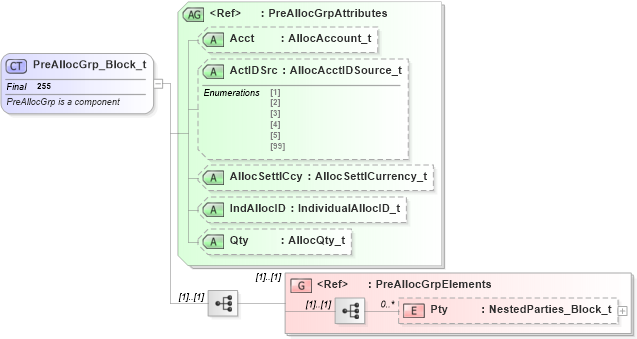

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-components-base-4-4_xsd Drilldown into PreAllocGrpElements in schema fixml-components-base-4-4_xsd Drilldown into Qty in schema fixml-components-base-4-4_xsd Drilldown into IndAllocID in schema fixml-components-base-4-4_xsd Drilldown into AllocSettlCcy in schema fixml-components-base-4-4_xsd Drilldown into ActIDSrc in schema fixml-components-base-4-4_xsd Drilldown into Acct in schema fixml-components-base-4-4_xsd Drilldown into PreAllocGrpAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of PreAllocGrp_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="PreAllocGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">PreAllocGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="PreAllocGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="PreAllocGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="PreAllocGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
<xs:group> nsA:PreAllocGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Acct nsA:Acct Optional
ActIDSrc nsA:ActIDSrc Optional
AllocSettlCcy nsA:AllocSettlCcy Optional
IndAllocID nsA:IndAllocID Optional
Qty nsA:Qty Optional
Collapse Derivation Tree:
Collapse References:
nsA:PreAll, nsA:PreAll, nsA:PreAll, nsA:PreAll
