Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: QuoteCancelAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-quotation-base-4-4.xsd

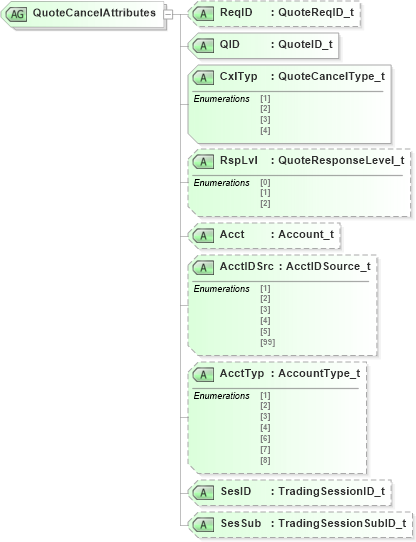

Collapse XSD Schema Diagram:
Drilldown into SesSub in schema fixml-quotation-base-4-4_xsd Drilldown into SesID in schema fixml-quotation-base-4-4_xsd Drilldown into AcctTyp in schema fixml-quotation-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-quotation-base-4-4_xsd Drilldown into Acct in schema fixml-quotation-base-4-4_xsd Drilldown into RspLvl in schema fixml-quotation-base-4-4_xsd Drilldown into CxlTyp in schema fixml-quotation-base-4-4_xsd Drilldown into QID in schema fixml-quotation-base-4-4_xsd Drilldown into ReqID in schema fixml-quotation-base-4-4_xsdXSD Diagram of QuoteCancelAttributes in schema fixml-quotation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="QuoteCancelAttributes">
    <xs:attribute name="ReqID" type="QuoteReqID_t" use="optional" />
    <xs:attribute name="QID" type="QuoteID_t" use="required" />
    <xs:attribute name="CxlTyp" type="QuoteCancelType_t" use="required" />
    <xs:attribute name="RspLvl" type="QuoteResponseLevel_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="optional" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Optional
QID nsA:QID Required
CxlTyp nsA:CxlTyp Required
RspLvl nsA:RspLvl Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
