Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: QuotReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:QuoteRequest_message_t
Containing Schema: fixml-quotation-base-4-4.xsd
Abstract
Collapse XSD Schema Diagram:

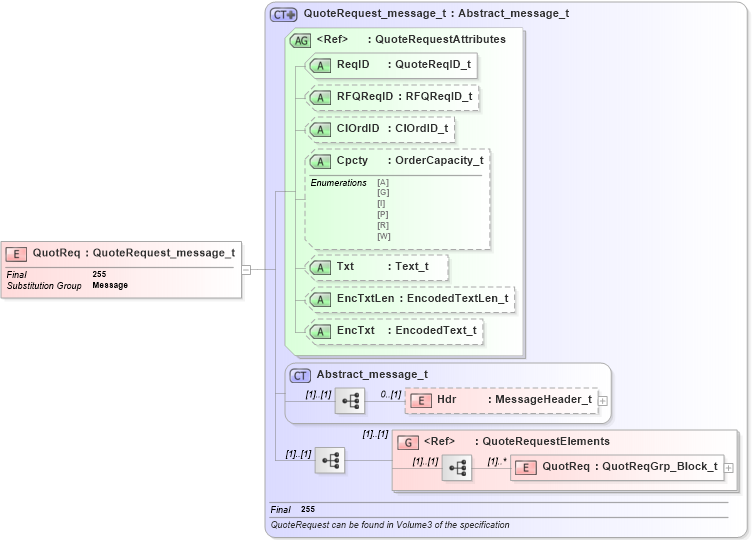

Drilldown into QuotReq in schema fixml-quotation-base-4-4_xsd Drilldown into QuoteRequestElements in schema fixml-quotation-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-quotation-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-quotation-base-4-4_xsd Drilldown into Txt in schema fixml-quotation-base-4-4_xsd Drilldown into Cpcty in schema fixml-quotation-base-4-4_xsd Drilldown into ClOrdID in schema fixml-quotation-base-4-4_xsd Drilldown into RFQReqID in schema fixml-quotation-base-4-4_xsd Drilldown into ReqID in schema fixml-quotation-base-4-4_xsd Drilldown into QuoteRequestAttributes in schema fixml-quotation-base-4-4_xsd Drilldown into QuoteRequest_message_t in schema fixml-quotation-base-4-4_xsdXSD Diagram of QuotReq in schema fixml-quotation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="QuotReq" type="QuoteRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
QuotReq nsA:QuotReq (1) unbounded
<xs:group> nsA:QuoteRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
RFQReqID nsA:RFQReqID Optional
ClOrdID nsA:ClOrdID Optional
Cpcty nsA:Cpcty Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
