Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: RegistrationInstructionsAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-registration-base-4-4.xsd

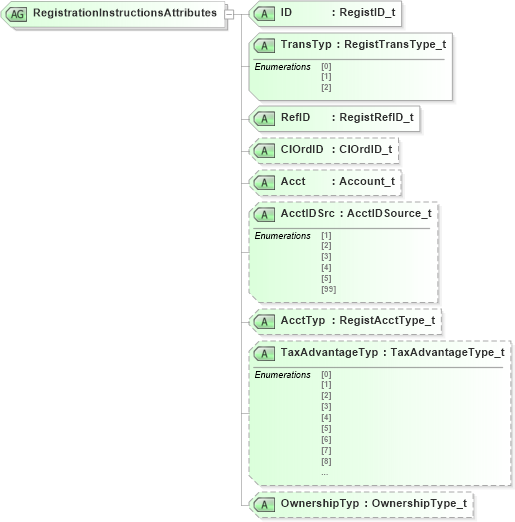

Collapse XSD Schema Diagram:
Drilldown into OwnershipTyp in schema fixml-registration-base-4-4_xsd Drilldown into TaxAdvantageTyp in schema fixml-registration-base-4-4_xsd Drilldown into AcctTyp in schema fixml-registration-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-registration-base-4-4_xsd Drilldown into Acct in schema fixml-registration-base-4-4_xsd Drilldown into ClOrdID in schema fixml-registration-base-4-4_xsd Drilldown into RefID in schema fixml-registration-base-4-4_xsd Drilldown into TransTyp in schema fixml-registration-base-4-4_xsd Drilldown into ID in schema fixml-registration-base-4-4_xsdXSD Diagram of RegistrationInstructionsAttributes in schema fixml-registration-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="RegistrationInstructionsAttributes">
    <xs:attribute name="ID" type="RegistID_t" use="required" />
    <xs:attribute name="TransTyp" type="RegistTransType_t" use="required" />
    <xs:attribute name="RefID" type="RegistRefID_t" use="required" />
    <xs:attribute name="ClOrdID" type="ClOrdID_t" use="optional" />
    <xs:attribute name="Acct" type="Account_t" use="optional" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="RegistAcctType_t" use="optional" />
    <xs:attribute name="TaxAdvantageTyp" type="TaxAdvantageType_t" use="optional" />
    <xs:attribute name="OwnershipTyp" type="OwnershipType_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID Required
TransTyp nsA:TransTyp Required
RefID nsA:RefID Required
ClOrdID nsA:ClOrdID Optional
Acct nsA:Acct Optional
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Optional
TaxAdvantageTyp nsA:TaxAdvantageTyp Optional
OwnershipTyp nsA:OwnershipTyp Optional
