Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: RequestForPositionsAckAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-positions-base-4-4.xsd

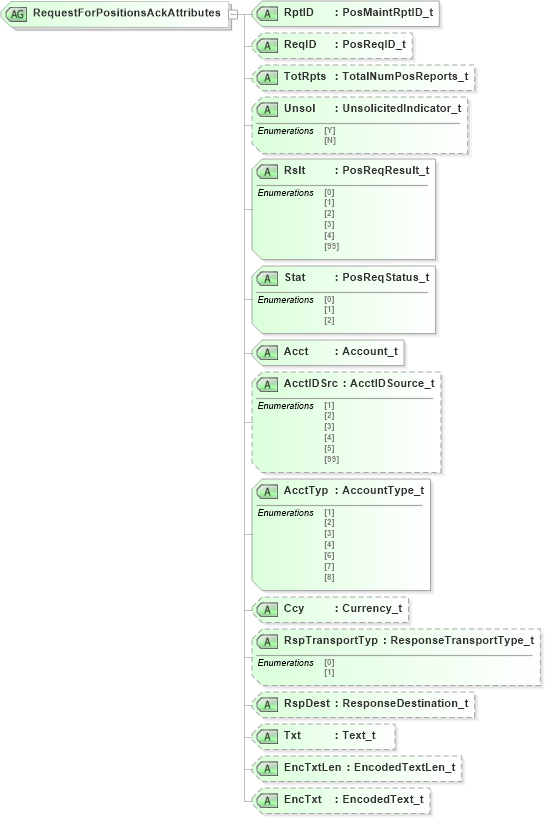

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-positions-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-positions-base-4-4_xsd Drilldown into Txt in schema fixml-positions-base-4-4_xsd Drilldown into RspDest in schema fixml-positions-base-4-4_xsd Drilldown into RspTransportTyp in schema fixml-positions-base-4-4_xsd Drilldown into Ccy in schema fixml-positions-base-4-4_xsd Drilldown into AcctTyp in schema fixml-positions-base-4-4_xsd Drilldown into AcctIDSrc in schema fixml-positions-base-4-4_xsd Drilldown into Acct in schema fixml-positions-base-4-4_xsd Drilldown into Stat in schema fixml-positions-base-4-4_xsd Drilldown into Rslt in schema fixml-positions-base-4-4_xsd Drilldown into Unsol in schema fixml-positions-base-4-4_xsd Drilldown into TotRpts in schema fixml-positions-base-4-4_xsd Drilldown into ReqID in schema fixml-positions-base-4-4_xsd Drilldown into RptID in schema fixml-positions-base-4-4_xsdXSD Diagram of RequestForPositionsAckAttributes in schema fixml-positions-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="RequestForPositionsAckAttributes">
    <xs:attribute name="RptID" type="PosMaintRptID_t" use="required" />
    <xs:attribute name="ReqID" type="PosReqID_t" use="optional" />
    <xs:attribute name="TotRpts" type="TotalNumPosReports_t" use="optional" />
    <xs:attribute name="Unsol" type="UnsolicitedIndicator_t" use="optional" />
    <xs:attribute name="Rslt" type="PosReqResult_t" use="required" />
    <xs:attribute name="Stat" type="PosReqStatus_t" use="required" />
    <xs:attribute name="Acct" type="Account_t" use="required" />
    <xs:attribute name="AcctIDSrc" type="AcctIDSource_t" use="optional" />
    <xs:attribute name="AcctTyp" type="AccountType_t" use="required" />
    <xs:attribute name="Ccy" type="Currency_t" use="optional" />
    <xs:attribute name="RspTransportTyp" type="ResponseTransportType_t" use="optional" />
    <xs:attribute name="RspDest" type="ResponseDestination_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
ReqID nsA:ReqID Optional
TotRpts nsA:TotRpts Optional
Unsol nsA:Unsol Optional
Rslt nsA:Rslt Required
Stat nsA:Stat Required
Acct nsA:Acct Required
AcctIDSrc nsA:AcctIDSrc Optional
AcctTyp nsA:AcctTyp Required
Ccy nsA:Ccy Optional
RspTransportTyp nsA:RspTransportTyp Optional
RspDest nsA:RspDest Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
