Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: RFQReqGrpAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-quotation-base-4-4.xsd

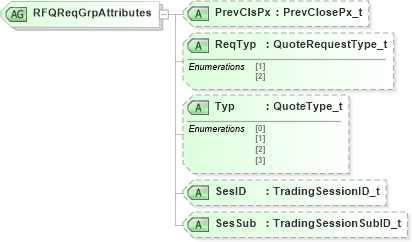

Collapse XSD Schema Diagram:
Drilldown into SesSub in schema fixml-quotation-base-4-4_xsd Drilldown into SesID in schema fixml-quotation-base-4-4_xsd Drilldown into Typ in schema fixml-quotation-base-4-4_xsd Drilldown into ReqTyp in schema fixml-quotation-base-4-4_xsd Drilldown into PrevClsPx in schema fixml-quotation-base-4-4_xsdXSD Diagram of RFQReqGrpAttributes in schema fixml-quotation-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="RFQReqGrpAttributes">
    <xs:attribute name="PrevClsPx" type="PrevClosePx_t" use="optional" />
    <xs:attribute name="ReqTyp" type="QuoteRequestType_t" use="optional" />
    <xs:attribute name="Typ" type="QuoteType_t" use="optional" />
    <xs:attribute name="SesID" type="TradingSessionID_t" use="optional" />
    <xs:attribute name="SesSub" type="TradingSessionSubID_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
PrevClsPx nsA:PrevClsPx Optional
ReqTyp nsA:ReqTyp Optional
Typ nsA:Typ Optional
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
