Definition Type: AttributeGroup
Name: RoutingGrpAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd

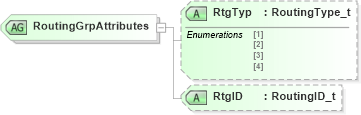

Collapse XSD Schema Diagram:
Drilldown into RtgID in schema fixml-components-base-4-4_xsd Drilldown into RtgTyp in schema fixml-components-base-4-4_xsdXSD Diagram of RoutingGrpAttributes in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="RoutingGrpAttributes">
    <xs:attribute name="RtgTyp" type="RoutingType_t" use="optional" />
    <xs:attribute name="RtgID" type="RoutingID_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RtgTyp nsA:RtgTyp Optional
RtgID nsA:RtgID Optional
