Definition Type: Element
Name: Rtg
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:RoutingGrp_Block_t
Containing Schema: fixml-indications-base-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

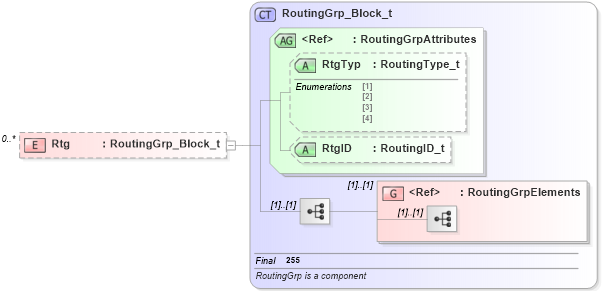

Collapse XSD Schema Diagram:
Drilldown into RoutingGrpElements in schema fixml-components-base-4-4_xsd Drilldown into RtgID in schema fixml-components-base-4-4_xsd Drilldown into RtgTyp in schema fixml-components-base-4-4_xsd Drilldown into RoutingGrpAttributes in schema fixml-components-base-4-4_xsd Drilldown into RoutingGrp_Block_t in schema fixml-components-base-4-4_xsdXSD Diagram of Rtg in schema fixml-indications-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="Rtg" type="RoutingGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:RoutingGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RtgTyp nsA:RtgTyp Optional
RtgID nsA:RtgID Optional
Collapse Derivation Tree:
