Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: SecStatReq
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:SecurityStatusRequest_message_t
Containing Schema: fixml-securitystatus-base-4-4.xsd
Abstract

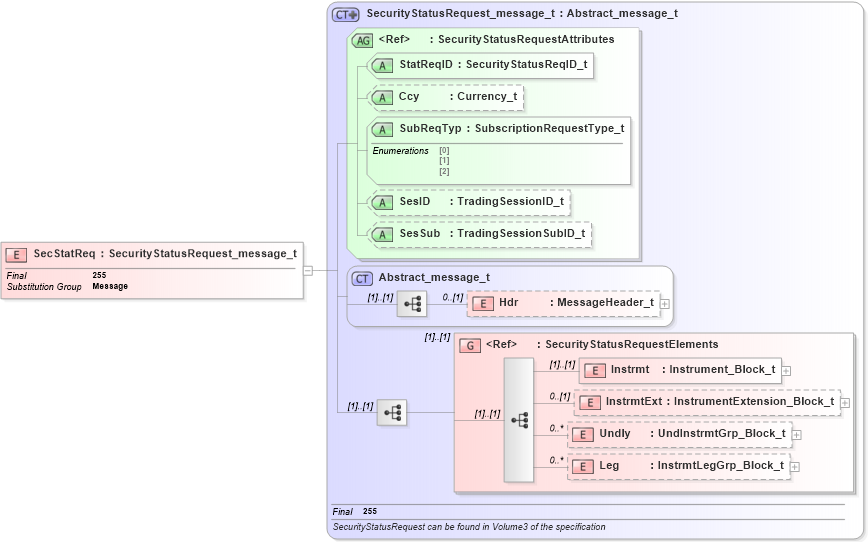

Collapse XSD Schema Diagram:
Drilldown into Leg in schema fixml-securitystatus-base-4-4_xsd Drilldown into Undly in schema fixml-securitystatus-base-4-4_xsd Drilldown into InstrmtExt in schema fixml-securitystatus-base-4-4_xsd Drilldown into Instrmt in schema fixml-securitystatus-base-4-4_xsd Drilldown into SecurityStatusRequestElements in schema fixml-securitystatus-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into SesSub in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesID in schema fixml-securitystatus-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-securitystatus-base-4-4_xsd Drilldown into Ccy in schema fixml-securitystatus-base-4-4_xsd Drilldown into StatReqID in schema fixml-securitystatus-base-4-4_xsd Drilldown into SecurityStatusRequestAttributes in schema fixml-securitystatus-base-4-4_xsd Drilldown into SecurityStatusRequest_message_t in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of SecStatReq in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="SecStatReq" type="SecurityStatusRequest_message_t" substitutionGroup="Message" final="#all" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
Instrmt nsA:Instrmt (1) (1)
InstrmtExt nsA:InstrmtExt 0 (1)
Undly nsA:Undly 0 unbounded
Leg nsA:Leg 0 unbounded
<xs:group> nsA:SecurityStatusRequestElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
StatReqID nsA:StatReqID Required
Ccy nsA:Ccy Optional
SubReqTyp nsA:SubReqTyp Required
SesID nsA:SesID Optional
SesSub nsA:SesSub Optional
Collapse Derivation Tree:
Collapse References:
nsA:Message
