Definition Type: AttributeGroup
Name: SettlementInstructionsAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-settlement-base-4-4.xsd

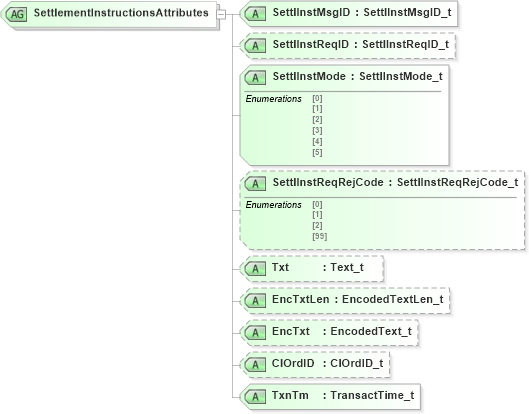

Collapse XSD Schema Diagram:
Drilldown into TxnTm in schema fixml-settlement-base-4-4_xsd Drilldown into ClOrdID in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxt in schema fixml-settlement-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-settlement-base-4-4_xsd Drilldown into Txt in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqRejCode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMode in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstReqID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstMsgID in schema fixml-settlement-base-4-4_xsdXSD Diagram of SettlementInstructionsAttributes in schema fixml-settlement-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="SettlementInstructionsAttributes">
    <xs:attribute name="SettlInstMsgID" type="SettlInstMsgID_t" use="required" />
    <xs:attribute name="SettlInstReqID" type="SettlInstReqID_t" use="optional" />
    <xs:attribute name="SettlInstMode" type="SettlInstMode_t" use="required" />
    <xs:attribute name="SettlInstReqRejCode" type="SettlInstReqRejCode_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
    <xs:attribute name="ClOrdID" type="ClOrdID_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
SettlInstMsgID nsA:SettlInstMsgID Required
SettlInstReqID nsA:SettlInstReqID Optional
SettlInstMode nsA:SettlInstMode Required
SettlInstReqRejCode nsA:SettlInstReqRejCode Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
ClOrdID nsA:ClOrdID Optional
TxnTm nsA:TxnTm Required
