Definition Type: ComplexType
Name: SettlInstGrp_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-settlement-base-4-4.xsd
Abstract
Documentation:
SettlInstGrp is a component

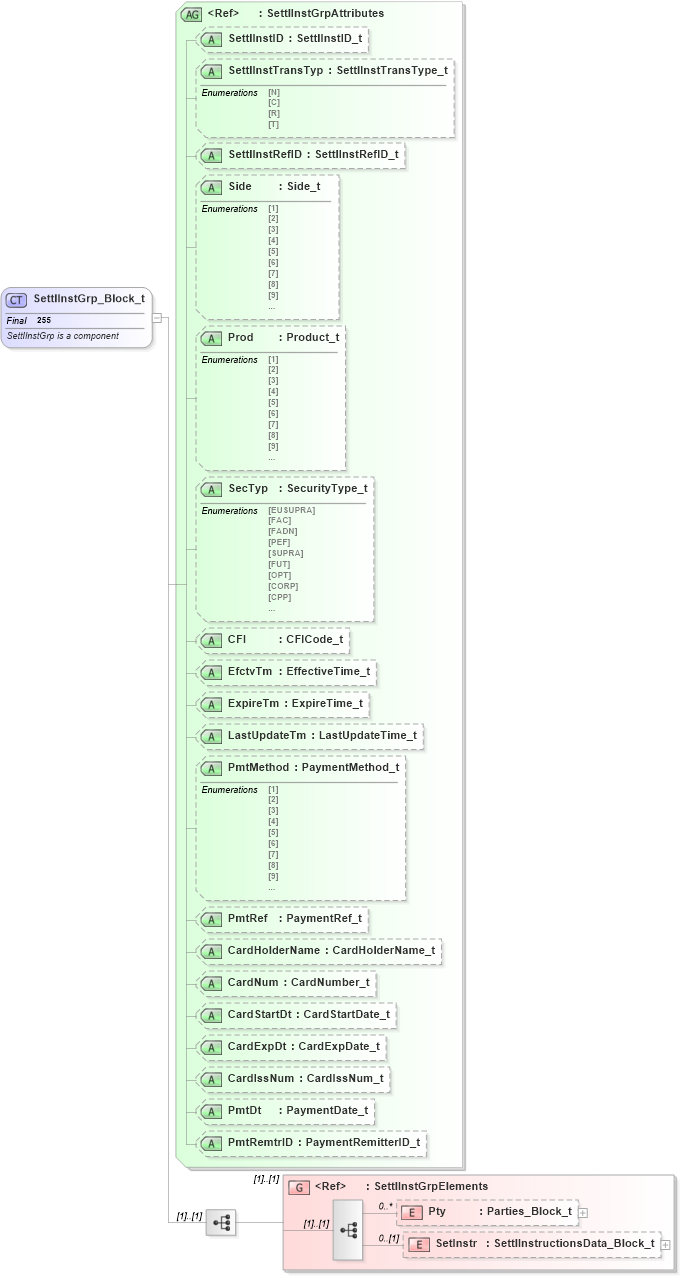

Collapse XSD Schema Diagram:
Drilldown into SetInstr in schema fixml-settlement-base-4-4_xsd Drilldown into Pty in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstGrpElements in schema fixml-settlement-base-4-4_xsd Drilldown into PmtRemtrID in schema fixml-settlement-base-4-4_xsd Drilldown into PmtDt in schema fixml-settlement-base-4-4_xsd Drilldown into CardIssNum in schema fixml-settlement-base-4-4_xsd Drilldown into CardExpDt in schema fixml-settlement-base-4-4_xsd Drilldown into CardStartDt in schema fixml-settlement-base-4-4_xsd Drilldown into CardNum in schema fixml-settlement-base-4-4_xsd Drilldown into CardHolderName in schema fixml-settlement-base-4-4_xsd Drilldown into PmtRef in schema fixml-settlement-base-4-4_xsd Drilldown into PmtMethod in schema fixml-settlement-base-4-4_xsd Drilldown into LastUpdateTm in schema fixml-settlement-base-4-4_xsd Drilldown into ExpireTm in schema fixml-settlement-base-4-4_xsd Drilldown into EfctvTm in schema fixml-settlement-base-4-4_xsd Drilldown into CFI in schema fixml-settlement-base-4-4_xsd Drilldown into SecTyp in schema fixml-settlement-base-4-4_xsd Drilldown into Prod in schema fixml-settlement-base-4-4_xsd Drilldown into Side in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstRefID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstTransTyp in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstID in schema fixml-settlement-base-4-4_xsd Drilldown into SettlInstGrpAttributes in schema fixml-settlement-base-4-4_xsdXSD Diagram of SettlInstGrp_Block_t in schema fixml-settlement-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="SettlInstGrp_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">SettlInstGrp is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="SettlInstGrp" ComponentType="ImplicitBlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="SettlInstGrpElements" />
    </xs:sequence>
    <xs:attributeGroup ref="SettlInstGrpAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
SetInstr nsA:SetInstr 0 (1)
<xs:group> nsA:SettlInstGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SettlInstID nsA:SettlInstID Optional
SettlInstTransTyp nsA:SettlInstTransTyp Optional
SettlInstRefID nsA:SettlInstRefID Optional
Side nsA:Side Optional
Prod nsA:Prod Optional
SecTyp nsA:SecTyp Optional
CFI nsA:CFI Optional
EfctvTm nsA:EfctvTm Optional
ExpireTm nsA:ExpireTm Optional
LastUpdateTm nsA:LastUpdateTm Optional
PmtMethod nsA:PmtMethod Optional
PmtRef nsA:PmtRef Optional
CardHolderName nsA:CardHolderName Optional
CardNum nsA:CardNum Optional
CardStartDt nsA:CardStartDt Optional
CardExpDt nsA:CardExpDt Optional
CardIssNum nsA:CardIssNum Optional
PmtDt nsA:PmtDt Optional
PmtRemtrID nsA:PmtRemtrID Optional
Collapse Derivation Tree:
Collapse References:
nsA:SetInst
