Definition Type: Element
Name: SideCrossCxl
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:SideCrossOrdCxlGrp_Block_t
Containing Schema: fixml-crossorders-base-4-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

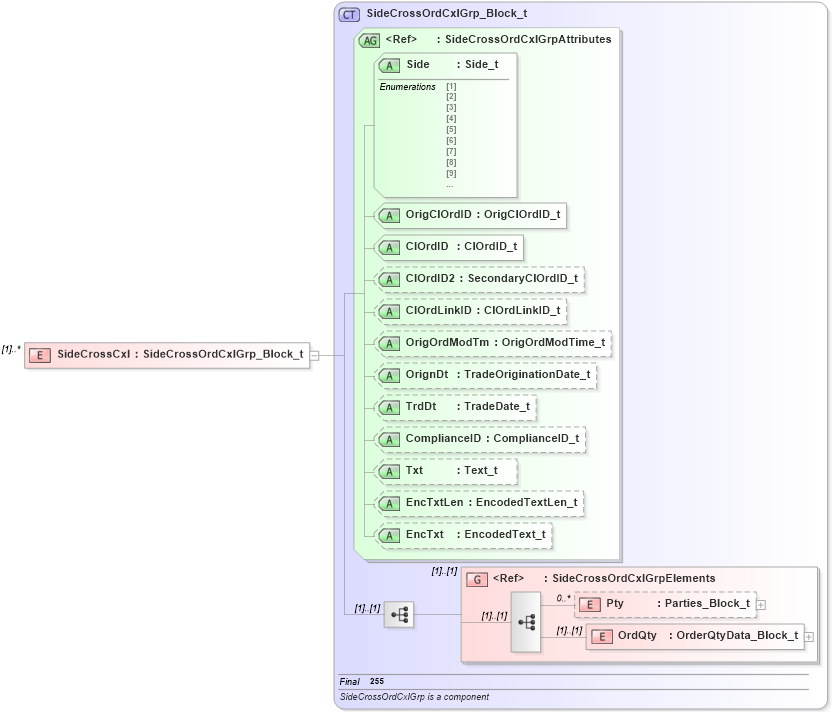

Collapse XSD Schema Diagram:
Drilldown into OrdQty in schema fixml-crossorders-base-4-4_xsd Drilldown into Pty in schema fixml-crossorders-base-4-4_xsd Drilldown into SideCrossOrdCxlGrpElements in schema fixml-crossorders-base-4-4_xsd Drilldown into EncTxt in schema fixml-crossorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-crossorders-base-4-4_xsd Drilldown into Txt in schema fixml-crossorders-base-4-4_xsd Drilldown into ComplianceID in schema fixml-crossorders-base-4-4_xsd Drilldown into TrdDt in schema fixml-crossorders-base-4-4_xsd Drilldown into OrignDt in schema fixml-crossorders-base-4-4_xsd Drilldown into OrigOrdModTm in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdLinkID in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdID2 in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdID in schema fixml-crossorders-base-4-4_xsd Drilldown into OrigClOrdID in schema fixml-crossorders-base-4-4_xsd Drilldown into Side in schema fixml-crossorders-base-4-4_xsd Drilldown into SideCrossOrdCxlGrpAttributes in schema fixml-crossorders-base-4-4_xsd Drilldown into SideCrossOrdCxlGrp_Block_t in schema fixml-crossorders-base-4-4_xsdXSD Diagram of SideCrossCxl in schema fixml-crossorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="SideCrossCxl" type="SideCrossOrdCxlGrp_Block_t" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Pty nsA:Pty 0 unbounded
OrdQty nsA:OrdQty (1) (1)
<xs:group> nsA:SideCrossOrdCxlGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Side nsA:Side Required
OrigClOrdID nsA:OrigClOrdID Required
ClOrdID nsA:ClOrdID Required
ClOrdID2 nsA:ClOrdID2 Optional
ClOrdLinkID nsA:ClOrdLinkID Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
ComplianceID nsA:ComplianceID Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
