Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: SideCrossOrdCxlGrpAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-crossorders-base-4-4.xsd

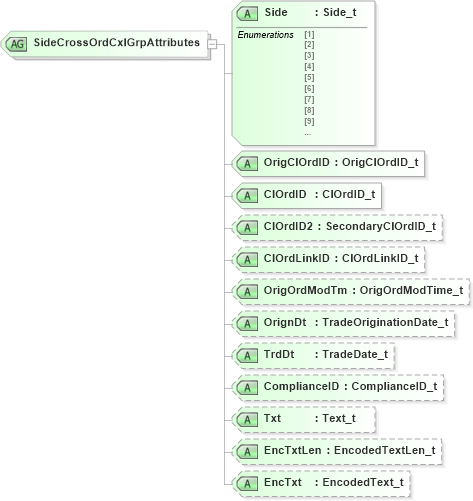

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-crossorders-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-crossorders-base-4-4_xsd Drilldown into Txt in schema fixml-crossorders-base-4-4_xsd Drilldown into ComplianceID in schema fixml-crossorders-base-4-4_xsd Drilldown into TrdDt in schema fixml-crossorders-base-4-4_xsd Drilldown into OrignDt in schema fixml-crossorders-base-4-4_xsd Drilldown into OrigOrdModTm in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdLinkID in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdID2 in schema fixml-crossorders-base-4-4_xsd Drilldown into ClOrdID in schema fixml-crossorders-base-4-4_xsd Drilldown into OrigClOrdID in schema fixml-crossorders-base-4-4_xsd Drilldown into Side in schema fixml-crossorders-base-4-4_xsdXSD Diagram of SideCrossOrdCxlGrpAttributes in schema fixml-crossorders-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="SideCrossOrdCxlGrpAttributes">
    <xs:attribute name="Side" type="Side_t" use="required" />
    <xs:attribute name="OrigClOrdID" type="OrigClOrdID_t" use="required" />
    <xs:attribute name="ClOrdID" type="ClOrdID_t" use="required" />
    <xs:attribute name="ClOrdID2" type="SecondaryClOrdID_t" use="optional" />
    <xs:attribute name="ClOrdLinkID" type="ClOrdLinkID_t" use="optional" />
    <xs:attribute name="OrigOrdModTm" type="OrigOrdModTime_t" use="optional" />
    <xs:attribute name="OrignDt" type="TradeOriginationDate_t" use="optional" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="optional" />
    <xs:attribute name="ComplianceID" type="ComplianceID_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
Side nsA:Side Required
OrigClOrdID nsA:OrigClOrdID Required
ClOrdID nsA:ClOrdID Required
ClOrdID2 nsA:ClOrdID2 Optional
ClOrdLinkID nsA:ClOrdLinkID Optional
OrigOrdModTm nsA:OrigOrdModTm Optional
OrignDt nsA:OrignDt Optional
TrdDt nsA:TrdDt Optional
ComplianceID nsA:ComplianceID Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
