Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: TradeCaptureReportAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-tradecapture-base-4-4.xsd

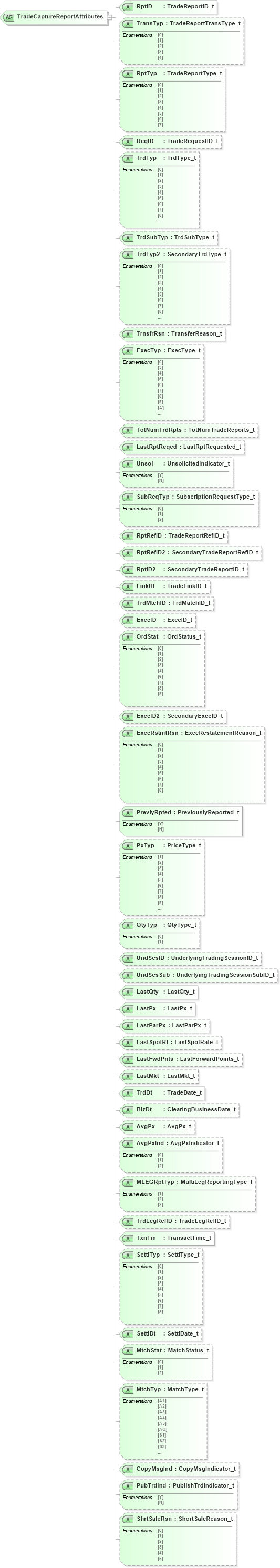

Collapse XSD Schema Diagram:
Drilldown into ShrtSaleRsn in schema fixml-tradecapture-base-4-4_xsd Drilldown into PubTrdInd in schema fixml-tradecapture-base-4-4_xsd Drilldown into CopyMsgInd in schema fixml-tradecapture-base-4-4_xsd Drilldown into MtchTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into MtchStat in schema fixml-tradecapture-base-4-4_xsd Drilldown into SettlDt in schema fixml-tradecapture-base-4-4_xsd Drilldown into SettlTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TxnTm in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdLegRefID in schema fixml-tradecapture-base-4-4_xsd Drilldown into MLEGRptTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into AvgPxInd in schema fixml-tradecapture-base-4-4_xsd Drilldown into AvgPx in schema fixml-tradecapture-base-4-4_xsd Drilldown into BizDt in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdDt in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastMkt in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastFwdPnts in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastSpotRt in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastParPx in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastPx in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastQty in schema fixml-tradecapture-base-4-4_xsd Drilldown into UndSesSub in schema fixml-tradecapture-base-4-4_xsd Drilldown into UndSesID in schema fixml-tradecapture-base-4-4_xsd Drilldown into QtyTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into PxTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into PrevlyRpted in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecRstmtRsn in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into OrdStat in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecID in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdMtchID in schema fixml-tradecapture-base-4-4_xsd Drilldown into LinkID in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptRefID2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptRefID in schema fixml-tradecapture-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into Unsol in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastRptReqed in schema fixml-tradecapture-base-4-4_xsd Drilldown into TotNumTrdRpts in schema fixml-tradecapture-base-4-4_xsd Drilldown into ExecTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrnsfrRsn in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdTyp2 in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdSubTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into ReqID in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into TransTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into RptID in schema fixml-tradecapture-base-4-4_xsdXSD Diagram of TradeCaptureReportAttributes in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="TradeCaptureReportAttributes">
    <xs:attribute name="RptID" type="TradeReportID_t" use="required" />
    <xs:attribute name="TransTyp" type="TradeReportTransType_t" use="optional" />
    <xs:attribute name="RptTyp" type="TradeReportType_t" use="optional" />
    <xs:attribute name="ReqID" type="TradeRequestID_t" use="optional" />
    <xs:attribute name="TrdTyp" type="TrdType_t" use="optional" />
    <xs:attribute name="TrdSubTyp" type="TrdSubType_t" use="optional" />
    <xs:attribute name="TrdTyp2" type="SecondaryTrdType_t" use="optional" />
    <xs:attribute name="TrnsfrRsn" type="TransferReason_t" use="optional" />
    <xs:attribute name="ExecTyp" type="ExecType_t" use="optional" />
    <xs:attribute name="TotNumTrdRpts" type="TotNumTradeReports_t" use="optional" />
    <xs:attribute name="LastRptReqed" type="LastRptRequested_t" use="optional" />
    <xs:attribute name="Unsol" type="UnsolicitedIndicator_t" use="optional" />
    <xs:attribute name="SubReqTyp" type="SubscriptionRequestType_t" use="optional" />
    <xs:attribute name="RptRefID" type="TradeReportRefID_t" use="optional" />
    <xs:attribute name="RptRefID2" type="SecondaryTradeReportRefID_t" use="optional" />
    <xs:attribute name="RptID2" type="SecondaryTradeReportID_t" use="optional" />
    <xs:attribute name="LinkID" type="TradeLinkID_t" use="optional" />
    <xs:attribute name="TrdMtchID" type="TrdMatchID_t" use="optional" />
    <xs:attribute name="ExecID" type="ExecID_t" use="optional" />
    <xs:attribute name="OrdStat" type="OrdStatus_t" use="optional" />
    <xs:attribute name="ExecID2" type="SecondaryExecID_t" use="optional" />
    <xs:attribute name="ExecRstmtRsn" type="ExecRestatementReason_t" use="optional" />
    <xs:attribute name="PrevlyRpted" type="PreviouslyReported_t" use="required" />
    <xs:attribute name="PxTyp" type="PriceType_t" use="optional" />
    <xs:attribute name="QtyTyp" type="QtyType_t" use="optional" />
    <xs:attribute name="UndSesID" type="UnderlyingTradingSessionID_t" use="optional" />
    <xs:attribute name="UndSesSub" type="UnderlyingTradingSessionSubID_t" use="optional" />
    <xs:attribute name="LastQty" type="LastQty_t" use="required" />
    <xs:attribute name="LastPx" type="LastPx_t" use="required" />
    <xs:attribute name="LastParPx" type="LastParPx_t" use="optional" />
    <xs:attribute name="LastSpotRt" type="LastSpotRate_t" use="optional" />
    <xs:attribute name="LastFwdPnts" type="LastForwardPoints_t" use="optional" />
    <xs:attribute name="LastMkt" type="LastMkt_t" use="optional" />
    <xs:attribute name="TrdDt" type="TradeDate_t" use="required" />
    <xs:attribute name="BizDt" type="ClearingBusinessDate_t" use="optional" />
    <xs:attribute name="AvgPx" type="AvgPx_t" use="optional" />
    <xs:attribute name="AvgPxInd" type="AvgPxIndicator_t" use="optional" />
    <xs:attribute name="MLEGRptTyp" type="MultiLegReportingType_t" use="optional" />
    <xs:attribute name="TrdLegRefID" type="TradeLegRefID_t" use="optional" />
    <xs:attribute name="TxnTm" type="TransactTime_t" use="required" />
    <xs:attribute name="SettlTyp" type="SettlType_t" use="optional" />
    <xs:attribute name="SettlDt" type="SettlDate_t" use="optional" />
    <xs:attribute name="MtchStat" type="MatchStatus_t" use="optional" />
    <xs:attribute name="MtchTyp" type="MatchType_t" use="optional" />
    <xs:attribute name="CopyMsgInd" type="CopyMsgIndicator_t" use="optional" />
    <xs:attribute name="PubTrdInd" type="PublishTrdIndicator_t" use="optional" />
    <xs:attribute name="ShrtSaleRsn" type="ShortSaleReason_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
RptID nsA:RptID Required
TransTyp nsA:TransTyp Optional
RptTyp nsA:RptTyp Optional
ReqID nsA:ReqID Optional
TrdTyp nsA:TrdTyp Optional
TrdSubTyp nsA:TrdSubTyp Optional
TrdTyp2 nsA:TrdTyp2 Optional
TrnsfrRsn nsA:TrnsfrRsn Optional
ExecTyp nsA:ExecTyp Optional
TotNumTrdRpts nsA:TotNumTrdRpts Optional
LastRptReqed nsA:LastRptReqed Optional
Unsol nsA:Unsol Optional
SubReqTyp nsA:SubReqTyp Optional
RptRefID nsA:RptRefID Optional
RptRefID2 nsA:RptRefID2 Optional
RptID2 nsA:RptID2 Optional
LinkID nsA:LinkID Optional
TrdMtchID nsA:TrdMtchID Optional
ExecID nsA:ExecID Optional
OrdStat nsA:OrdStat Optional
ExecID2 nsA:ExecID2 Optional
ExecRstmtRsn nsA:ExecRstmtRsn Optional
PrevlyRpted nsA:PrevlyRpted Required
PxTyp nsA:PxTyp Optional
QtyTyp nsA:QtyTyp Optional
UndSesID nsA:UndSesID Optional
UndSesSub nsA:UndSesSub Optional
LastQty nsA:LastQty Required
LastPx nsA:LastPx Required
LastParPx nsA:LastParPx Optional
LastSpotRt nsA:LastSpotRt Optional
LastFwdPnts nsA:LastFwdPnts Optional
LastMkt nsA:LastMkt Optional
TrdDt nsA:TrdDt Required
BizDt nsA:BizDt Optional
AvgPx nsA:AvgPx Optional
AvgPxInd nsA:AvgPxInd Optional
MLEGRptTyp nsA:MLEGRptTyp Optional
TrdLegRefID nsA:TrdLegRefID Optional
TxnTm nsA:TxnTm Required
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
MtchStat nsA:MtchStat Optional
MtchTyp nsA:MtchTyp Optional
CopyMsgInd nsA:CopyMsgInd Optional
PubTrdInd nsA:PubTrdInd Optional
ShrtSaleRsn nsA:ShrtSaleRsn Optional
