Documentation for Financial Information eXchange (FIX)
Definition Type: Group
Name: TradeCaptureReportElements
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-tradecapture-base-4-4.xsd

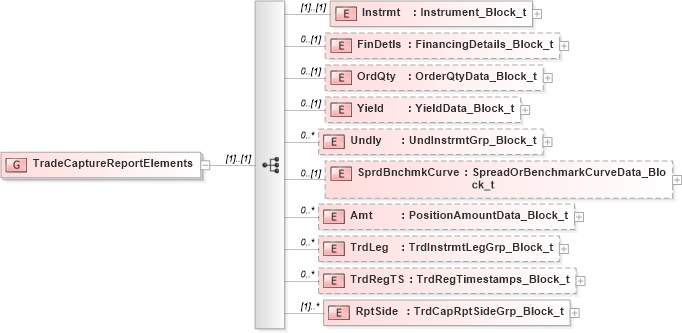

Collapse XSD Schema Diagram:
Drilldown into RptSide in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdRegTS in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdLeg in schema fixml-tradecapture-base-4-4_xsd Drilldown into Amt in schema fixml-tradecapture-base-4-4_xsd Drilldown into SprdBnchmkCurve in schema fixml-tradecapture-base-4-4_xsd Drilldown into Undly in schema fixml-tradecapture-base-4-4_xsd Drilldown into Yield in schema fixml-tradecapture-base-4-4_xsd Drilldown into OrdQty in schema fixml-tradecapture-base-4-4_xsd Drilldown into FinDetls in schema fixml-tradecapture-base-4-4_xsd Drilldown into Instrmt in schema fixml-tradecapture-base-4-4_xsdXSD Diagram of TradeCaptureReportElements in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:group name="TradeCaptureReportElements">
    <xs:sequence>
        <xs:element name="Instrmt" type="Instrument_Block_t" />
        <xs:element name="FinDetls" type="FinancingDetails_Block_t" minOccurs="0" />
        <xs:element name="OrdQty" type="OrderQtyData_Block_t" minOccurs="0" />
        <xs:element name="Yield" type="YieldData_Block_t" minOccurs="0" />
        <xs:element name="Undly" type="UndInstrmtGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="SprdBnchmkCurve" type="SpreadOrBenchmarkCurveData_Block_t" minOccurs="0" />
        <xs:element name="Amt" type="PositionAmountData_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdLeg" type="TrdInstrmtLegGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="TrdRegTS" type="TrdRegTimestamps_Block_t" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="RptSide" type="TrdCapRptSideGrp_Block_t" maxOccurs="unbounded" />
    </xs:sequence>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instrmt nsA:Instrmt (1) (1)
FinDetls nsA:FinDetls 0 (1)
OrdQty nsA:OrdQty 0 (1)
Yield nsA:Yield 0 (1)
Undly nsA:Undly 0 unbounded
SprdBnchmkCurve nsA:SprdBnchmkCurve 0 (1)
Amt nsA:Amt 0 unbounded
TrdLeg nsA:TrdLeg 0 unbounded
TrdRegTS nsA:TrdRegTS 0 unbounded
RptSide nsA:RptSide (1) unbounded
