Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: TradeCaptureReportRequestAckAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-tradecapture-base-4-4.xsd

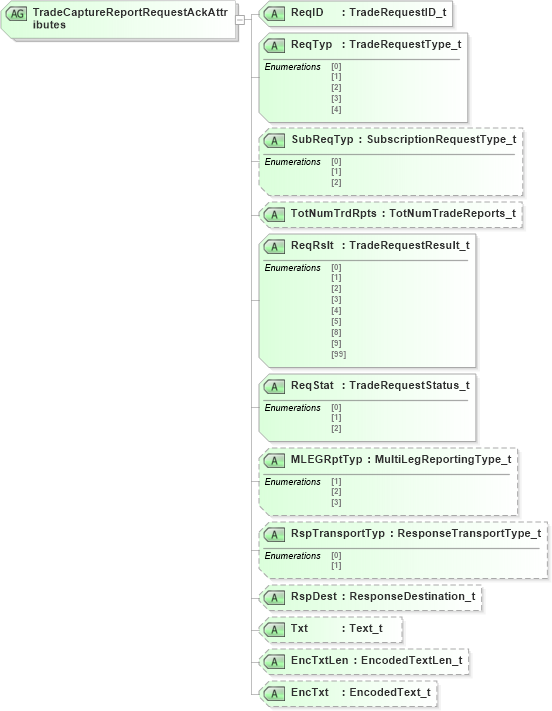

Collapse XSD Schema Diagram:
Drilldown into EncTxt in schema fixml-tradecapture-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-tradecapture-base-4-4_xsd Drilldown into Txt in schema fixml-tradecapture-base-4-4_xsd Drilldown into RspDest in schema fixml-tradecapture-base-4-4_xsd Drilldown into RspTransportTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into MLEGRptTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into ReqStat in schema fixml-tradecapture-base-4-4_xsd Drilldown into ReqRslt in schema fixml-tradecapture-base-4-4_xsd Drilldown into TotNumTrdRpts in schema fixml-tradecapture-base-4-4_xsd Drilldown into SubReqTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into ReqTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into ReqID in schema fixml-tradecapture-base-4-4_xsdXSD Diagram of TradeCaptureReportRequestAckAttributes in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="TradeCaptureReportRequestAckAttributes">
    <xs:attribute name="ReqID" type="TradeRequestID_t" use="required" />
    <xs:attribute name="ReqTyp" type="TradeRequestType_t" use="required" />
    <xs:attribute name="SubReqTyp" type="SubscriptionRequestType_t" use="optional" />
    <xs:attribute name="TotNumTrdRpts" type="TotNumTradeReports_t" use="optional" />
    <xs:attribute name="ReqRslt" type="TradeRequestResult_t" use="required" />
    <xs:attribute name="ReqStat" type="TradeRequestStatus_t" use="required" />
    <xs:attribute name="MLEGRptTyp" type="MultiLegReportingType_t" use="optional" />
    <xs:attribute name="RspTransportTyp" type="ResponseTransportType_t" use="optional" />
    <xs:attribute name="RspDest" type="ResponseDestination_t" use="optional" />
    <xs:attribute name="Txt" type="Text_t" use="optional" />
    <xs:attribute name="EncTxtLen" type="EncodedTextLen_t" use="optional" />
    <xs:attribute name="EncTxt" type="EncodedText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Required
ReqTyp nsA:ReqTyp Required
SubReqTyp nsA:SubReqTyp Optional
TotNumTrdRpts nsA:TotNumTrdRpts Optional
ReqRslt nsA:ReqRslt Required
ReqStat nsA:ReqStat Required
MLEGRptTyp nsA:MLEGRptTyp Optional
RspTransportTyp nsA:RspTransportTyp Optional
RspDest nsA:RspDest Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
