Documentation for Financial Information eXchange (FIX)
Definition Type: ComplexType
Name: TradingSessionStatus_message_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:Abstract_message_t
Containing Schema: fixml-securitystatus-base-4-4.xsd
Abstract
Documentation:
TradingSessionStatus can be found in Volume3 of the specification

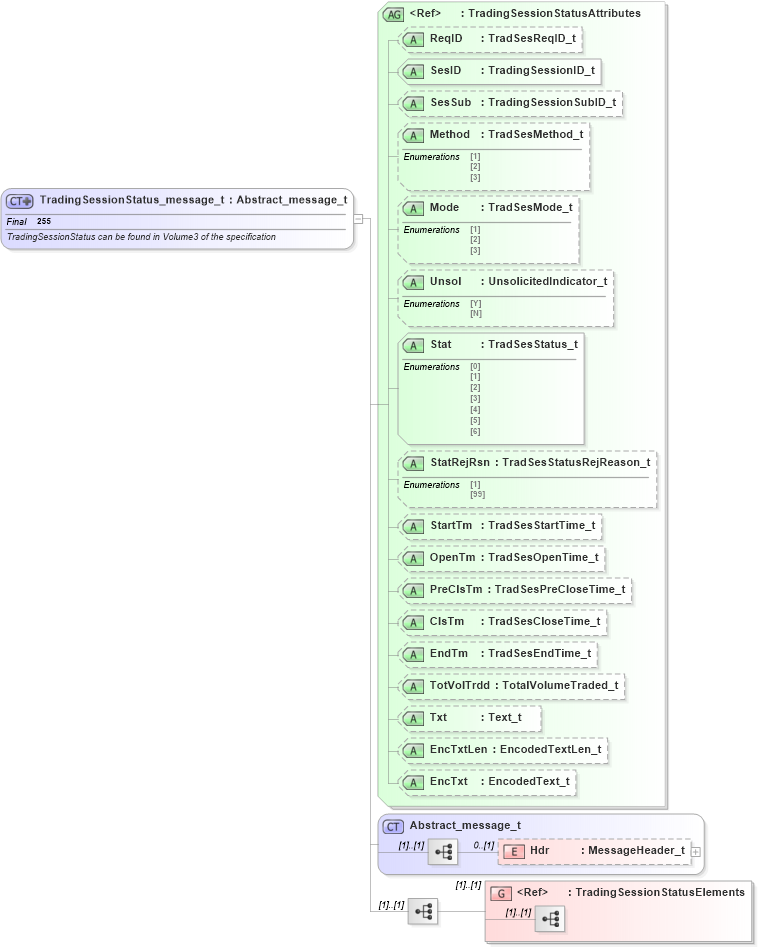

Collapse XSD Schema Diagram:
Drilldown into TradingSessionStatusElements in schema fixml-securitystatus-base-4-4_xsd Drilldown into Hdr in schema fixml-components-base-4-4_xsd Drilldown into Abstract_message_t in schema fixml-components-base-4-4_xsd Drilldown into EncTxt in schema fixml-securitystatus-base-4-4_xsd Drilldown into EncTxtLen in schema fixml-securitystatus-base-4-4_xsd Drilldown into Txt in schema fixml-securitystatus-base-4-4_xsd Drilldown into TotVolTrdd in schema fixml-securitystatus-base-4-4_xsd Drilldown into EndTm in schema fixml-securitystatus-base-4-4_xsd Drilldown into ClsTm in schema fixml-securitystatus-base-4-4_xsd Drilldown into PreClsTm in schema fixml-securitystatus-base-4-4_xsd Drilldown into OpenTm in schema fixml-securitystatus-base-4-4_xsd Drilldown into StartTm in schema fixml-securitystatus-base-4-4_xsd Drilldown into StatRejRsn in schema fixml-securitystatus-base-4-4_xsd Drilldown into Stat in schema fixml-securitystatus-base-4-4_xsd Drilldown into Unsol in schema fixml-securitystatus-base-4-4_xsd Drilldown into Mode in schema fixml-securitystatus-base-4-4_xsd Drilldown into Method in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesSub in schema fixml-securitystatus-base-4-4_xsd Drilldown into SesID in schema fixml-securitystatus-base-4-4_xsd Drilldown into ReqID in schema fixml-securitystatus-base-4-4_xsd Drilldown into TradingSessionStatusAttributes in schema fixml-securitystatus-base-4-4_xsdXSD Diagram of TradingSessionStatus_message_t in schema fixml-securitystatus-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="TradingSessionStatus_message_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">TradingSessionStatus can be found in Volume3 of the specification
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="TradingSessionStatus" ComponentType="Message" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Abstract_message_t">
            <xs:sequence>
                <xs:group ref="TradingSessionStatusElements" />
            </xs:sequence>
            <xs:attributeGroup ref="TradingSessionStatusAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hdr nsA:Hdr 0 (1)
<xs:group> nsA:TradingSessionStatusElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ReqID nsA:ReqID Optional
SesID nsA:SesID Required
SesSub nsA:SesSub Optional
Method nsA:Method Optional
Mode nsA:Mode Optional
Unsol nsA:Unsol Optional
Stat nsA:Stat Required
StatRejRsn nsA:StatRejRsn Optional
StartTm nsA:StartTm Optional
OpenTm nsA:OpenTm Optional
PreClsTm nsA:PreClsTm Optional
ClsTm nsA:ClsTm Optional
EndTm nsA:EndTm Optional
TotVolTrdd nsA:TotVolTrdd Optional
Txt nsA:Txt Optional
EncTxtLen nsA:EncTxtLen Optional
EncTxt nsA:EncTxt Optional
Collapse Derivation Tree:
Collapse References:
nsA:TrdgSesStat
