Documentation for Financial Information eXchange (FIX)
Definition Type: Element
Name: TrdLeg
Namespace: http://www.fixprotocol.org/FIXML-4-4
Type: nsA:TrdInstrmtLegGrp_Block_t
Containing Schema: fixml-tradecapture-base-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

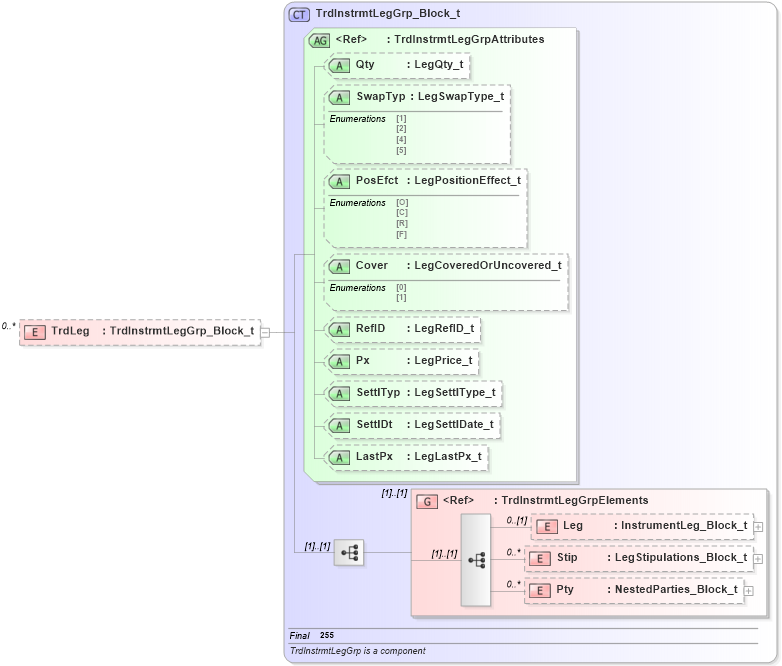

Collapse XSD Schema Diagram:
Drilldown into Pty in schema fixml-tradecapture-base-4-4_xsd Drilldown into Stip in schema fixml-tradecapture-base-4-4_xsd Drilldown into Leg in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdInstrmtLegGrpElements in schema fixml-tradecapture-base-4-4_xsd Drilldown into LastPx in schema fixml-tradecapture-base-4-4_xsd Drilldown into SettlDt in schema fixml-tradecapture-base-4-4_xsd Drilldown into SettlTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into Px in schema fixml-tradecapture-base-4-4_xsd Drilldown into RefID in schema fixml-tradecapture-base-4-4_xsd Drilldown into Cover in schema fixml-tradecapture-base-4-4_xsd Drilldown into PosEfct in schema fixml-tradecapture-base-4-4_xsd Drilldown into SwapTyp in schema fixml-tradecapture-base-4-4_xsd Drilldown into Qty in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdInstrmtLegGrpAttributes in schema fixml-tradecapture-base-4-4_xsd Drilldown into TrdInstrmtLegGrp_Block_t in schema fixml-tradecapture-base-4-4_xsdXSD Diagram of TrdLeg in schema fixml-tradecapture-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:element name="TrdLeg" type="TrdInstrmtLegGrp_Block_t" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Leg nsA:Leg 0 (1)
Stip nsA:Stip 0 unbounded
Pty nsA:Pty 0 unbounded
<xs:group> nsA:TrdInstrmtLegGrpElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Qty nsA:Qty Optional
SwapTyp nsA:SwapTyp Optional
PosEfct nsA:PosEfct Optional
Cover nsA:Cover Optional
RefID nsA:RefID Optional
Px nsA:Px Optional
SettlTyp nsA:SettlTyp Optional
SettlDt nsA:SettlDt Optional
LastPx nsA:LastPx Optional
Collapse Derivation Tree:
