Definition Type: ComplexType
Name: UnderlyingInstrument_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
UnderlyingInstrument is a component

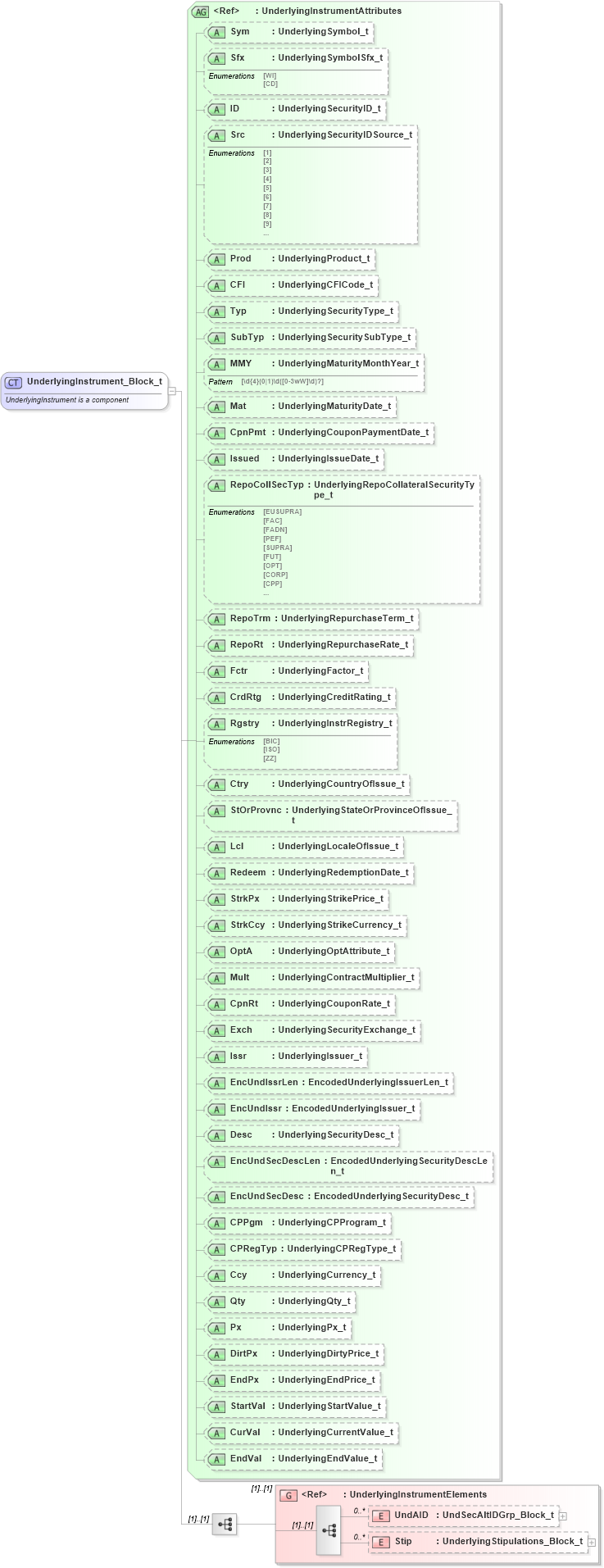

Collapse XSD Schema Diagram:
Drilldown into Stip in schema fixml-components-base-4-4_xsd Drilldown into UndAID in schema fixml-components-base-4-4_xsd Drilldown into UnderlyingInstrumentElements in schema fixml-components-base-4-4_xsd Drilldown into EndVal in schema fixml-components-base-4-4_xsd Drilldown into CurVal in schema fixml-components-base-4-4_xsd Drilldown into StartVal in schema fixml-components-base-4-4_xsd Drilldown into EndPx in schema fixml-components-base-4-4_xsd Drilldown into DirtPx in schema fixml-components-base-4-4_xsd Drilldown into Px in schema fixml-components-base-4-4_xsd Drilldown into Qty in schema fixml-components-base-4-4_xsd Drilldown into Ccy in schema fixml-components-base-4-4_xsd Drilldown into CPRegTyp in schema fixml-components-base-4-4_xsd Drilldown into CPPgm in schema fixml-components-base-4-4_xsd Drilldown into EncUndSecDesc in schema fixml-components-base-4-4_xsd Drilldown into EncUndSecDescLen in schema fixml-components-base-4-4_xsd Drilldown into Desc in schema fixml-components-base-4-4_xsd Drilldown into EncUndIssr in schema fixml-components-base-4-4_xsd Drilldown into EncUndIssrLen in schema fixml-components-base-4-4_xsd Drilldown into Issr in schema fixml-components-base-4-4_xsd Drilldown into Exch in schema fixml-components-base-4-4_xsd Drilldown into CpnRt in schema fixml-components-base-4-4_xsd Drilldown into Mult in schema fixml-components-base-4-4_xsd Drilldown into OptA in schema fixml-components-base-4-4_xsd Drilldown into StrkCcy in schema fixml-components-base-4-4_xsd Drilldown into StrkPx in schema fixml-components-base-4-4_xsd Drilldown into Redeem in schema fixml-components-base-4-4_xsd Drilldown into Lcl in schema fixml-components-base-4-4_xsd Drilldown into StOrProvnc in schema fixml-components-base-4-4_xsd Drilldown into Ctry in schema fixml-components-base-4-4_xsd Drilldown into Rgstry in schema fixml-components-base-4-4_xsd Drilldown into CrdRtg in schema fixml-components-base-4-4_xsd Drilldown into Fctr in schema fixml-components-base-4-4_xsd Drilldown into RepoRt in schema fixml-components-base-4-4_xsd Drilldown into RepoTrm in schema fixml-components-base-4-4_xsd Drilldown into RepoCollSecTyp in schema fixml-components-base-4-4_xsd Drilldown into Issued in schema fixml-components-base-4-4_xsd Drilldown into CpnPmt in schema fixml-components-base-4-4_xsd Drilldown into Mat in schema fixml-components-base-4-4_xsd Drilldown into MMY in schema fixml-components-base-4-4_xsd Drilldown into SubTyp in schema fixml-components-base-4-4_xsd Drilldown into Typ in schema fixml-components-base-4-4_xsd Drilldown into CFI in schema fixml-components-base-4-4_xsd Drilldown into Prod in schema fixml-components-base-4-4_xsd Drilldown into Src in schema fixml-components-base-4-4_xsd Drilldown into ID in schema fixml-components-base-4-4_xsd Drilldown into Sfx in schema fixml-components-base-4-4_xsd Drilldown into Sym in schema fixml-components-base-4-4_xsd Drilldown into UnderlyingInstrumentAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of UnderlyingInstrument_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="UnderlyingInstrument_Block_t">
    <xs:annotation>
        <xs:documentation xml:lang="en">UnderlyingInstrument is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="UnderlyingInstrument" ComponentType="Block" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="UnderlyingInstrumentElements" />
    </xs:sequence>
    <xs:attributeGroup ref="UnderlyingInstrumentAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UndAID nsA:UndAID 0 unbounded
Stip nsA:Stip 0 unbounded
<xs:group> nsA:UnderlyingInstrumentElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Sym nsA:Sym Optional
Sfx nsA:Sfx Optional
ID nsA:ID Optional
Src nsA:Src Optional
Prod nsA:Prod Optional
CFI nsA:CFI Optional
Typ nsA:Typ Optional
SubTyp nsA:SubTyp Optional
MMY nsA:MMY Optional
Mat nsA:Mat Optional
CpnPmt nsA:CpnPmt Optional
Issued nsA:Issued Optional
RepoCollSecTyp nsA:RepoCollSecTyp Optional
RepoTrm nsA:RepoTrm Optional
RepoRt nsA:RepoRt Optional
Fctr nsA:Fctr Optional
CrdRtg nsA:CrdRtg Optional
Rgstry nsA:Rgstry Optional
Ctry nsA:Ctry Optional
StOrProvnc nsA:StOrProvnc Optional
Lcl nsA:Lcl Optional
Redeem nsA:Redeem Optional
StrkPx nsA:StrkPx Optional
StrkCcy nsA:StrkCcy Optional
OptA nsA:OptA Optional
Mult nsA:Mult Optional
CpnRt nsA:CpnRt Optional
Exch nsA:Exch Optional
Issr nsA:Issr Optional
EncUndIssrLen nsA:EncUndIssrLen Optional
EncUndIssr nsA:EncUndIssr Optional
Desc nsA:Desc Optional
EncUndSecDescLen nsA:EncUndSecDescLen Optional
EncUndSecDesc nsA:EncUndSecDesc Optional
CPPgm nsA:CPPgm Optional
CPRegTyp nsA:CPRegTyp Optional
Ccy nsA:Ccy Optional
Qty nsA:Qty Optional
Px nsA:Px Optional
DirtPx nsA:DirtPx Optional
EndPx nsA:EndPx Optional
StartVal nsA:StartVal Optional
CurVal nsA:CurVal Optional
EndVal nsA:EndVal Optional
Collapse Derivation Tree:
Collapse References:
nsA:UndInstrmtGrp_Block_t, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:Undly, nsA:UndlynsA:Undly,
