Definition Type: ComplexType
Name: UnderlyingStipulations_Block_t
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd
Abstract
Documentation:
UnderlyingStipulations is a component

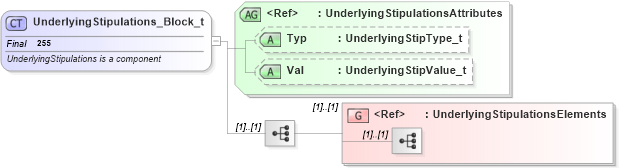

Collapse XSD Schema Diagram:
Drilldown into UnderlyingStipulationsElements in schema fixml-components-base-4-4_xsd Drilldown into Val in schema fixml-components-base-4-4_xsd Drilldown into Typ in schema fixml-components-base-4-4_xsd Drilldown into UnderlyingStipulationsAttributes in schema fixml-components-base-4-4_xsdXSD Diagram of UnderlyingStipulations_Block_t in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:complexType name="UnderlyingStipulations_Block_t" final="#all">
    <xs:annotation>
        <xs:documentation xml:lang="en">UnderlyingStipulations is a component
		</xs:documentation>
        <xs:appinfo xmlns:x="http://www.fixprotocol.org/fixml/metadata.xsd">
            <xs:Xref Protocol="FIX" name="UnderlyingStipulations" ComponentType="BlockRepeating" />
            <xs:Xref Protocol="ISO_15022_XML" />
        </xs:appinfo>
    </xs:annotation>
    <xs:sequence>
        <xs:group ref="UnderlyingStipulationsElements" />
    </xs:sequence>
    <xs:attributeGroup ref="UnderlyingStipulationsAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:group> nsA:UnderlyingStipulationsElements (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Typ nsA:Typ Optional
Val nsA:Val Optional
Collapse Derivation Tree:
  • UnderlyingStipulations_Block_t
Collapse References:
nsA:Stip
