Documentation for Financial Information eXchange (FIX)
Definition Type: AttributeGroup
Name: UserResponseAttributes
Namespace: http://www.fixprotocol.org/FIXML-4-4
Containing Schema: fixml-components-base-4-4.xsd

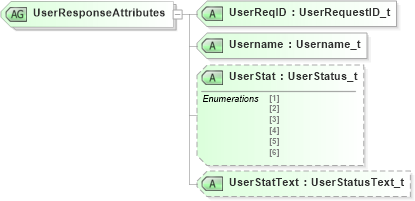

Collapse XSD Schema Diagram:
Drilldown into UserStatText in schema fixml-components-base-4-4_xsd Drilldown into UserStat in schema fixml-components-base-4-4_xsd Drilldown into Username in schema fixml-components-base-4-4_xsd Drilldown into UserReqID in schema fixml-components-base-4-4_xsdXSD Diagram of UserResponseAttributes in schema fixml-components-base-4-4_xsd (Financial Information eXchange (FIX))
Collapse XSD Schema Code:
<xs:attributeGroup name="UserResponseAttributes">
    <xs:attribute name="UserReqID" type="UserRequestID_t" use="required" />
    <xs:attribute name="Username" type="Username_t" use="required" />
    <xs:attribute name="UserStat" type="UserStatus_t" use="optional" />
    <xs:attribute name="UserStatText" type="UserStatusText_t" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
UserReqID nsA:UserReqID Required
Username nsA:Username Required
UserStat nsA:UserStat Optional
UserStatText nsA:UserStatText Optional
