Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Cash
Namespace: http://www.fpml.org/2004/FpML-4-1
Type: nsA:UnderlyingAsset
Containing Schema: fpml-asset-4-1.xsd
Abstract

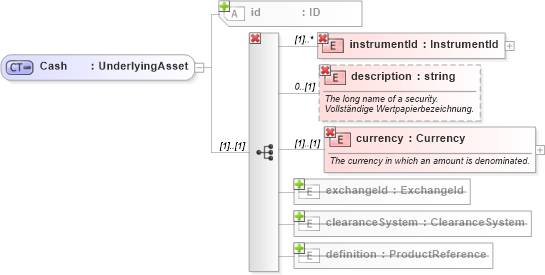

Collapse XSD Schema Diagram:
Drilldown into definition in schema fpml-asset-4-1_xsd Drilldown into clearanceSystem in schema fpml-asset-4-1_xsd Drilldown into exchangeId in schema fpml-asset-4-1_xsd Drilldown into currency in schema fpml-asset-4-1_xsd Drilldown into description in schema fpml-asset-4-1_xsd Drilldown into instrumentId in schema fpml-asset-4-1_xsd Drilldown into id in schema fpml-asset-4-1_xsdXSD Diagram of Cash in schema fpml-asset-4-1_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Cash">
    <xsd:complexContent>
        <xsd:restriction base="UnderlyingAsset">
            <xsd:sequence>
                <xsd:element name="instrumentId" type="InstrumentId" maxOccurs="unbounded" />
                <xsd:element name="description" type="xsd:string" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The long name of a security.</xsd:documentation>
                        <xsd:documentation xml:lang="de">Vollständige Wertpapierbezeichnung.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="currency" type="Currency">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The currency in which an amount is denominated.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:restriction>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
currency nsA:currency 0 (1)
exchangeId nsA:exchangeId 0 (1)
clearanceSystem nsA:clearanceSystem 0 (1)
definition nsA:definition 0 (1)
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
currency nsA:currency (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:cash
