Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquityOptionTransactionSupplement
Namespace: http://www.fpml.org/2004/FpML-4-1
Type: nsA:EquityDerivativeShortFormBase
Containing Schema: fpml-eqd-4-1.xsd
Abstract
Documentation:
A type for defining equity option transaction supplements

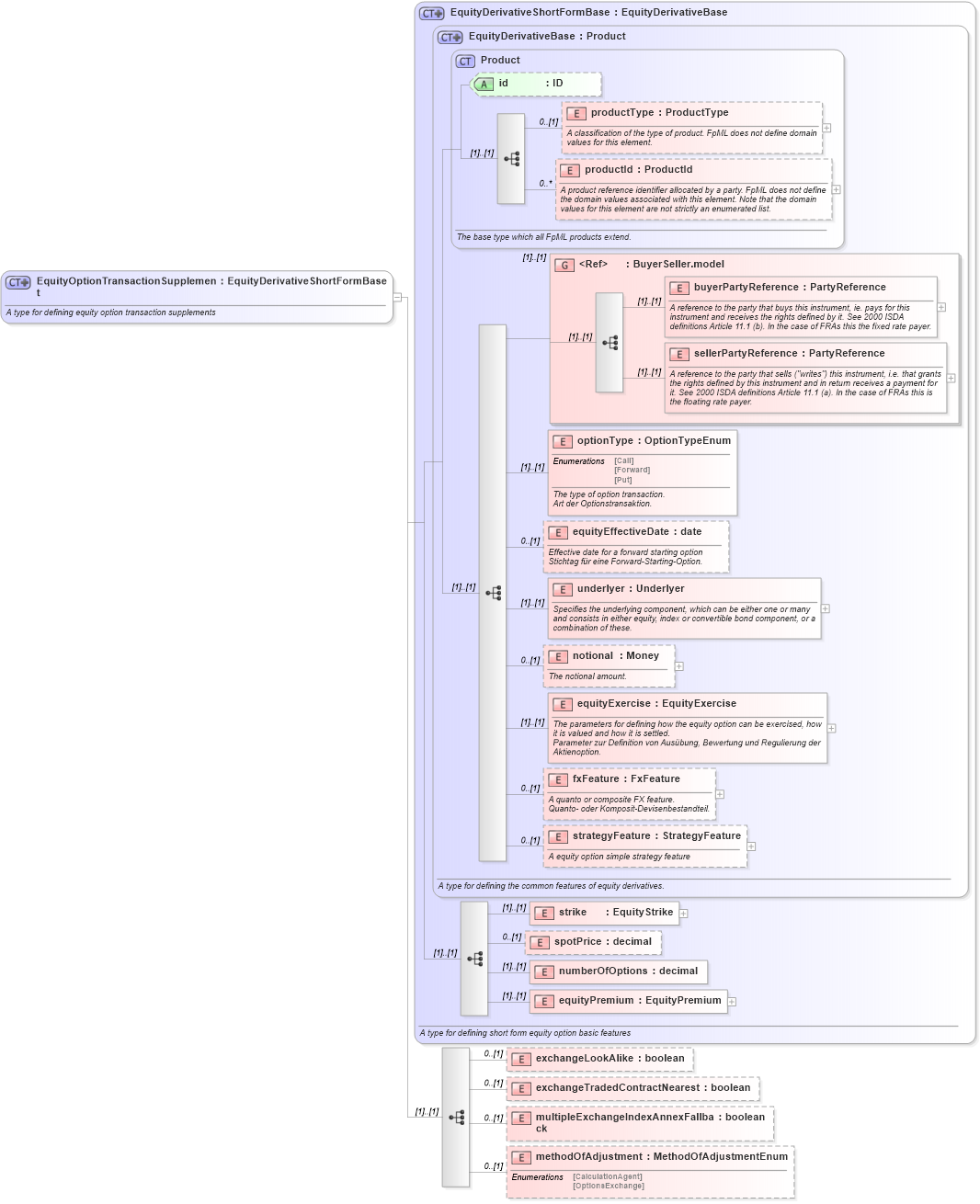

Collapse XSD Schema Diagram:
Drilldown into methodOfAdjustment in schema fpml-eqd-4-1_xsd Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eqd-4-1_xsd Drilldown into exchangeTradedContractNearest in schema fpml-eqd-4-1_xsd Drilldown into exchangeLookAlike in schema fpml-eqd-4-1_xsd Drilldown into equityPremium in schema fpml-eqd-4-1_xsd Drilldown into numberOfOptions in schema fpml-eqd-4-1_xsd Drilldown into spotPrice in schema fpml-eqd-4-1_xsd Drilldown into strike in schema fpml-eqd-4-1_xsd Drilldown into strategyFeature in schema fpml-eqd-4-1_xsd Drilldown into fxFeature in schema fpml-eqd-4-1_xsd Drilldown into equityExercise in schema fpml-eqd-4-1_xsd Drilldown into notional in schema fpml-eqd-4-1_xsd Drilldown into underlyer in schema fpml-eqd-4-1_xsd Drilldown into equityEffectiveDate in schema fpml-eqd-4-1_xsd Drilldown into optionType in schema fpml-eqd-4-1_xsd Drilldown into sellerPartyReference in schema fpml-shared-4-1_xsd Drilldown into buyerPartyReference in schema fpml-shared-4-1_xsd Drilldown into BuyerSeller.model in schema fpml-shared-4-1_xsd Drilldown into productId in schema fpml-shared-4-1_xsd Drilldown into productType in schema fpml-shared-4-1_xsd Drilldown into id in schema fpml-shared-4-1_xsd Drilldown into Product in schema fpml-shared-4-1_xsd Drilldown into EquityDerivativeBase in schema fpml-eqd-4-1_xsd Drilldown into EquityDerivativeShortFormBase in schema fpml-eqd-4-1_xsdXSD Diagram of EquityOptionTransactionSupplement in schema fpml-eqd-4-1_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquityOptionTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining equity option transaction supplements</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="EquityDerivativeShortFormBase">
            <xsd:sequence>
                <xsd:element name="exchangeLookAlike" type="xsd:boolean" minOccurs="0" />
                <xsd:element name="exchangeTradedContractNearest" type="xsd:boolean" minOccurs="0" />
                <xsd:element name="multipleExchangeIndexAnnexFallback" type="xsd:boolean" minOccurs="0" />
                <xsd:element name="methodOfAdjustment" type="MethodOfAdjustmentEnum" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsA:productType 0 (1)
productId nsA:productId 0 unbounded
buyerPartyReference nsA:buyerPartyReference (1) (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
optionType nsA:optionType (1) (1)
equityEffectiveDate nsA:equityEffectiveDate 0 (1)
underlyer nsA:underlyer (1) (1)
notional nsA:notional 0 (1)
equityExercise nsA:equityExercise (1) (1)
fxFeature nsA:fxFeature 0 (1)
strategyFeature nsA:strategyFeature 0 (1)
strike nsA:strike (1) (1)
spotPrice nsA:spotPrice 0 (1)
numberOfOptions nsA:numberOfOptions (1) (1)
equityPremium nsA:equityPremium (1) (1)
exchangeLookAlike nsA:exchangeLookAlike 0 (1)
exchangeTradedContractNearest nsA:exchangeTradedContractNearest 0 (1)
multipleExchangeIndexAnnexFallback nsA:multipleExchangeIndexAnnexFallback 0 (1)
methodOfAdjustment nsA:methodOfAdjustment 0 (1)
<xs:group> nsA:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:equityOptionTransactionSupplement
