Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Index
Namespace: http://www.fpml.org/2004/FpML-4-1
Type: nsA:UnderlyingAsset
Containing Schema: fpml-asset-4-1.xsd
Abstract

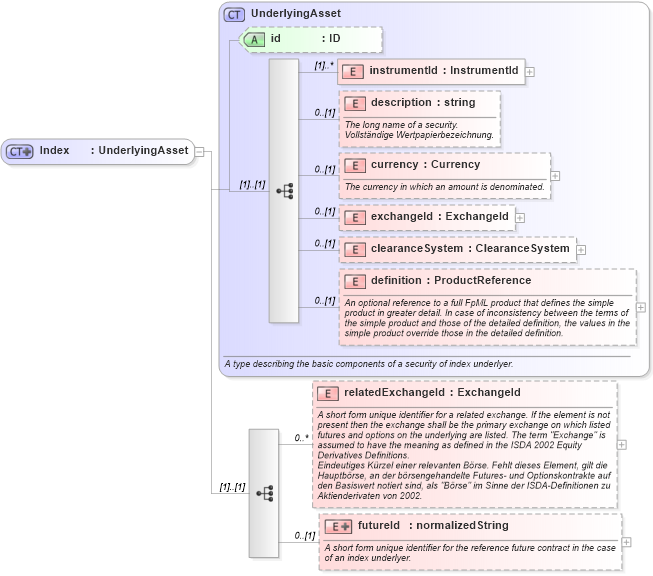

Collapse XSD Schema Diagram:
Drilldown into futureId in schema fpml-asset-4-1_xsd Drilldown into relatedExchangeId in schema fpml-asset-4-1_xsd Drilldown into definition in schema fpml-asset-4-1_xsd Drilldown into clearanceSystem in schema fpml-asset-4-1_xsd Drilldown into exchangeId in schema fpml-asset-4-1_xsd Drilldown into currency in schema fpml-asset-4-1_xsd Drilldown into description in schema fpml-asset-4-1_xsd Drilldown into instrumentId in schema fpml-asset-4-1_xsd Drilldown into id in schema fpml-asset-4-1_xsd Drilldown into UnderlyingAsset in schema fpml-asset-4-1_xsdXSD Diagram of Index in schema fpml-asset-4-1_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Index">
    <xsd:complexContent>
        <xsd:extension base="UnderlyingAsset">
            <xsd:sequence>
                <xsd:element name="relatedExchangeId" type="ExchangeId" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.</xsd:documentation>
                        <xsd:documentation xml:lang="de">Eindeutiges Kürzel einer relevanten Börse. Fehlt dieses Element, gilt die Hauptbörse, an der börsengehandelte Futures- und Optionskontrakte auf den Basiswert notiert sind, als "Börse" im Sinne der ISDA-Definitionen zu Aktienderivaten von 2002.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="futureId" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A short form unique identifier for the reference future contract in the case of an index underlyer.</xsd:documentation>
                    </xsd:annotation>
                    <xsd:complexType>
                        <xsd:simpleContent>
                            <xsd:extension base="xsd:normalizedString">
                                <xsd:attribute name="futureIdScheme" type="xsd:anyURI" />
                            </xsd:extension>
                        </xsd:simpleContent>
                    </xsd:complexType>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
currency nsA:currency 0 (1)
exchangeId nsA:exchangeId 0 (1)
clearanceSystem nsA:clearanceSystem 0 (1)
definition nsA:definition 0 (1)
relatedExchangeId nsA:relatedExchangeId 0 unbounded
futureId nsA:futureId 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:index
